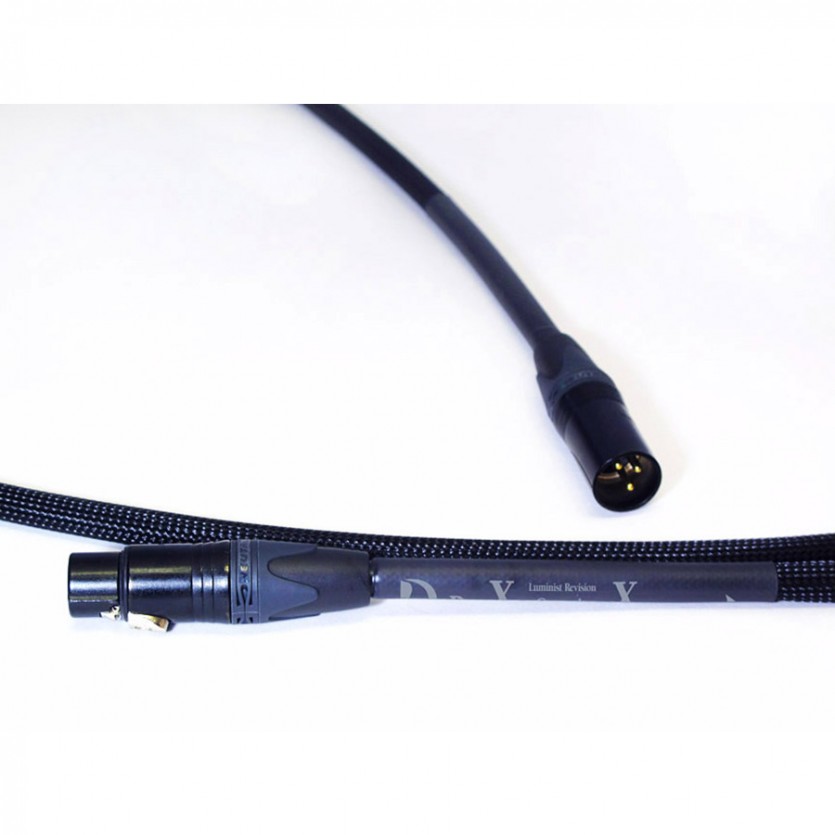

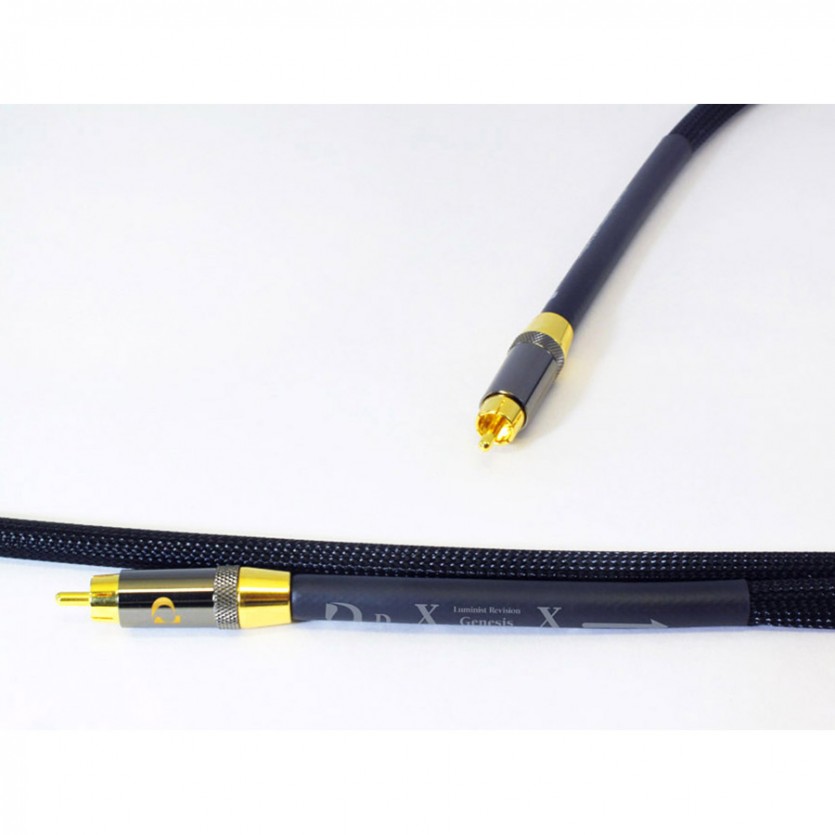

The Genesis line of Digital Interconnects are crafted with two important criteria: exquisitely detailed musical sound and a phenomenal price. They are available in 75 Ω SPDIF (RCA & BNC) and 110 Ω AES/EBU (XLR) configurations. If your system demands a custom configuration, please contact us. We're able to custom-build to fit your needs!
As a part of Purist Audio Design's Luminist Revision, We redesigned and greatly improved the RCA connectors using beryllium copper and increasing the thickness of the gold plating. We also greatly improved the XLR connectors by using beryllium copper with gold plating on the pins.
All Genesis cables come packaged in a handsome soft case.
| Genesis Digital Interconnect Specifications | |
|---|---|
| Conductor | Copper |
| Metals | Copper |
| Shielding | 98% |
| Dielectric Material | P.E. |
| Gauge (effective) | 24 AWG |
| Dampening Material | N/A |
| Capacitance SPDIF | 68.33 pF |
| Capacitance AES/EBU | 16.29 pF |
| Impedance SPDIF | 75 Ω |
| Impedance AES/EBU | 110 Ω |
| Estimated Break-In Time | 100 Hours |
| Cable Diameter | 5/16" OD |
| Connector Type | RCA (SPDIF) / XLR (AES/EBU) |
| Material Treatment | Triple (3x) Cryomagⓒ |
