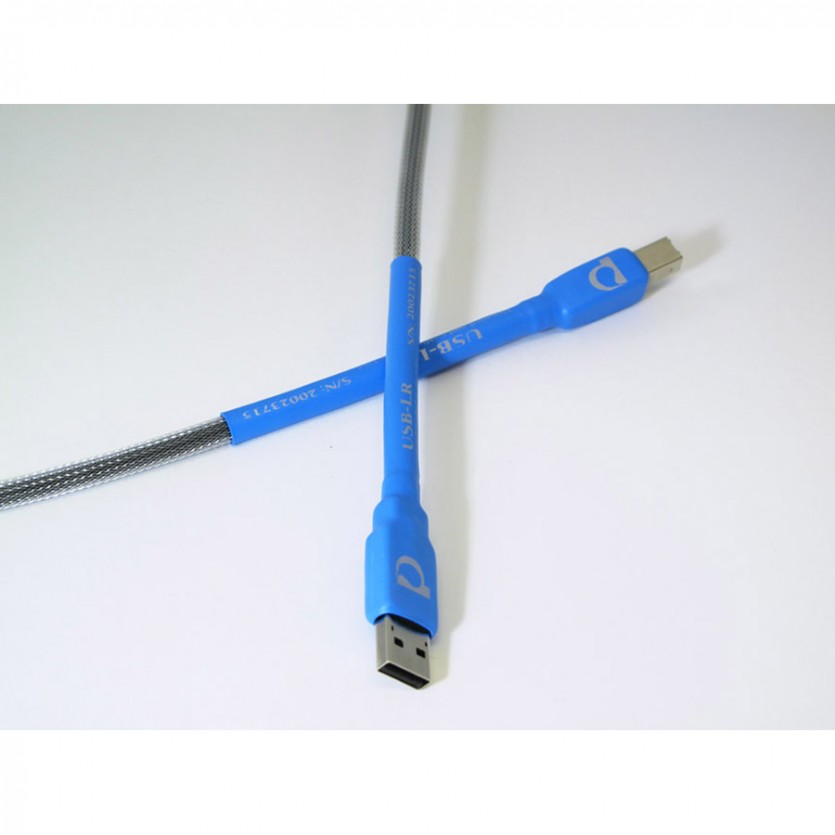

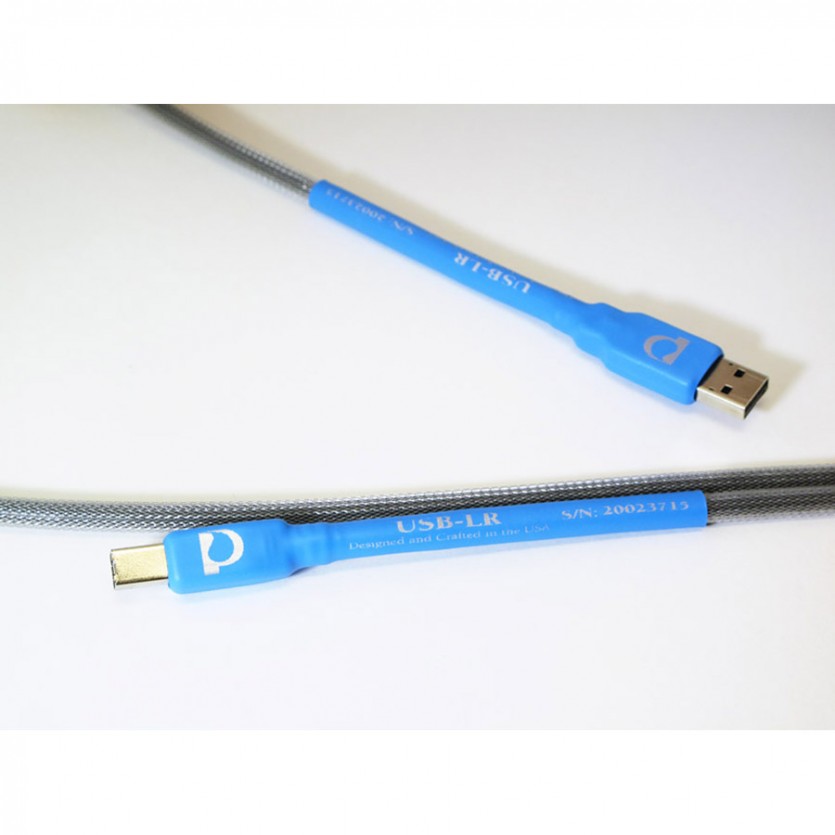

디지털 케이블 Purist USB Cable

형식 USB A-B 케이블

목록으로

본문

Detail view

Purist Audio Design introduces the All New Ultra-high Performance USB Audio Cable. The USB cable is specifically designed for computer audio applications. The design uses large gauge conductors allow for accurate signal transfer up to 5 meters compared with other computer USB cables, which are limited to a few meters. This allows computers can be located away from audio components without compromising performance.

The Purist Audio Design USB Cable utilizes precision construction techniques and superior noise rejection result in a richer, more natural sound compared with computer USB cables. The cable also incorporates low noise dielectrics and double shielding providing superior noise performance for better resolution of musical details and a wider dynamic range.

Note: Some computer USB outputs cannot drive longer lengths of typical USB audio cables. Purist Audio Design USB Audio Cable is a high resolution, high speed cable that will pass a high quality DAC signal over longer lengths than expected with a wide assortment of computer interfaces.


Configuration:USB A to USB B

Available Lengths:1.0 M to 5.0 M


USB Specifications
Conductor Copper
Metals Copper
Shielding 100% Foil, 65% Braid
Dielectric Material PVC
Gauge, Data 28 AWG Twisted Pair
Gauge, Power 20 AWG
Gauge, Drain 28 AWG
Resistance Data 0.237 Ω/m (conductor)
Resistance Power 0.034 Ω/m (conductor)
USB Specification 2.0
Cable Diameter 1/4" OD
Connector Type USB A to USB B
Material Treatment Triple (3x) Cryomagⓒ
