스피커 케이블 Neptune Speaker/Bi-Wire Cable

형식 스피커 케이블

목록으로

본문

Detail view

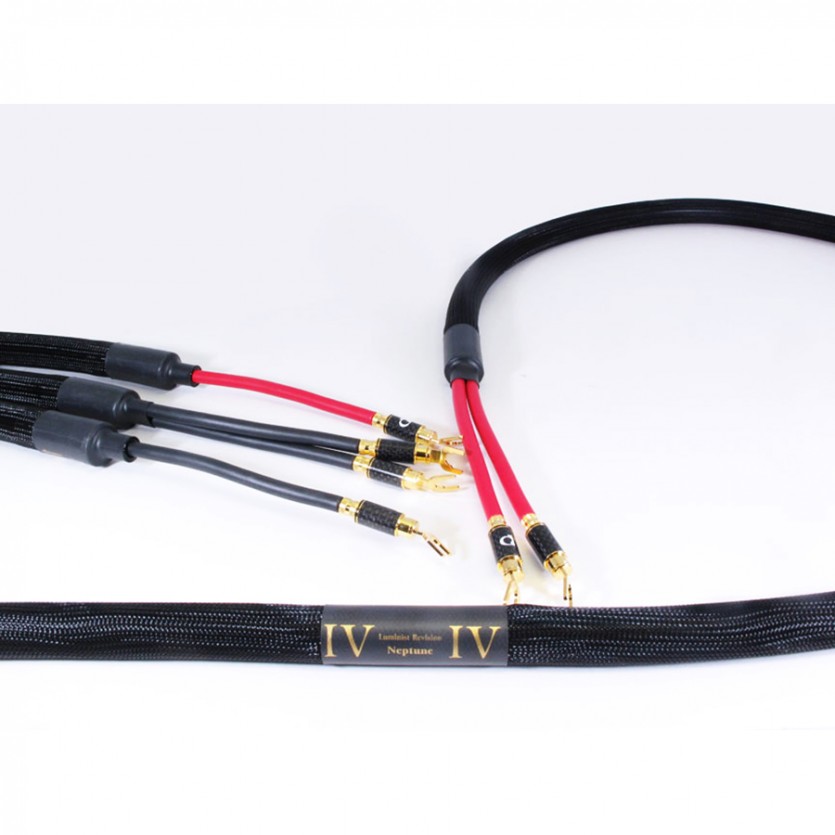

Purist Audio Design's newest addition to our Luminist Revision is the Neptune Cable line. It is the pinnacle of our Fluid shielded cables! The speaker cables are crafted around fine single crystal copper strands in a 7 AWG bundle. In order to keep the speaker cables flexible, the positive and negative signals in a channel are separated (like what’s done for the Dominus and 25th Anniversary speaker cables) making it a four (4) cable set. Neptune cables deliver a larger soundstage over the Venustas cables with stunning detail in the mid-range!

Custom for Your System

The audiophile aims for the highest quality and best sound possible. We offer the Neptune line in two different configurations, with customization available upon request:

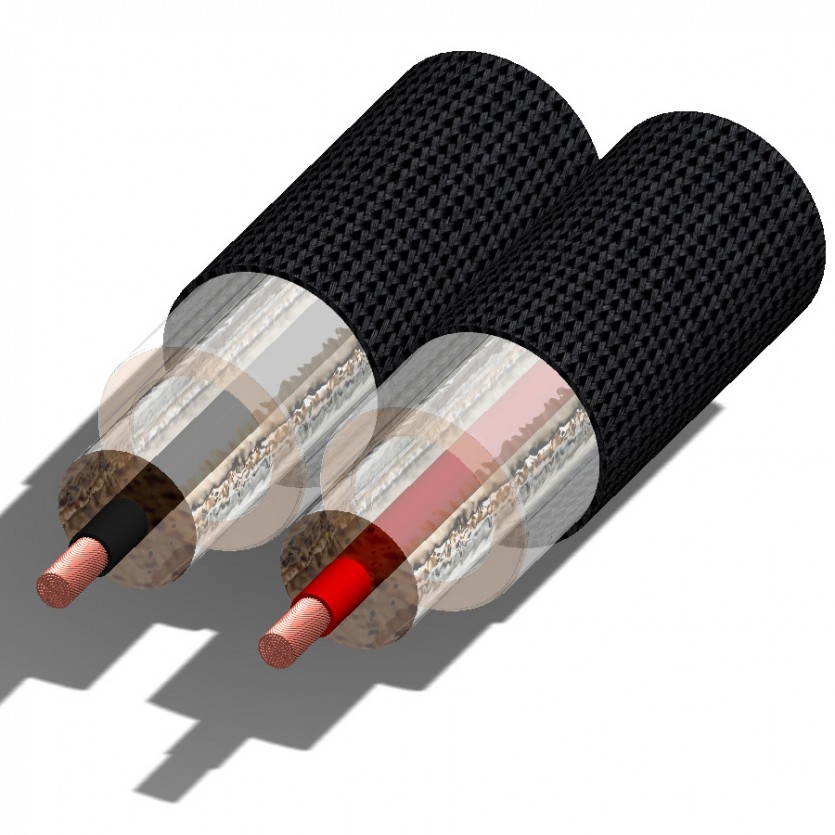

• Standard Speaker

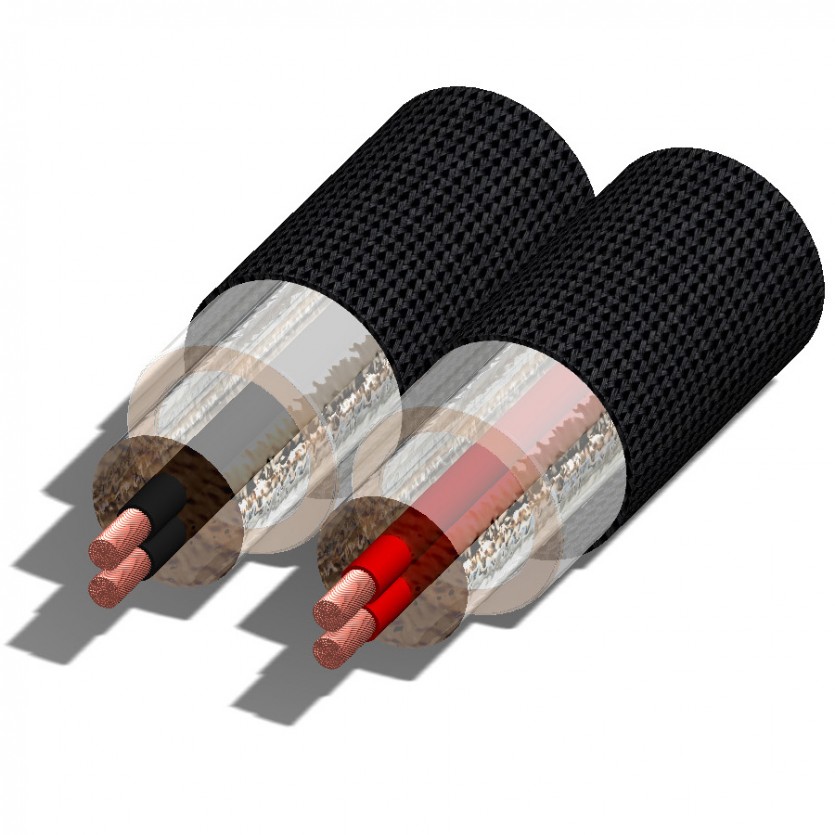

• Bi-Wire Speaker


These speaker cables come in a two (2) cable set.


The Neptune Speaker Cables come standard with:

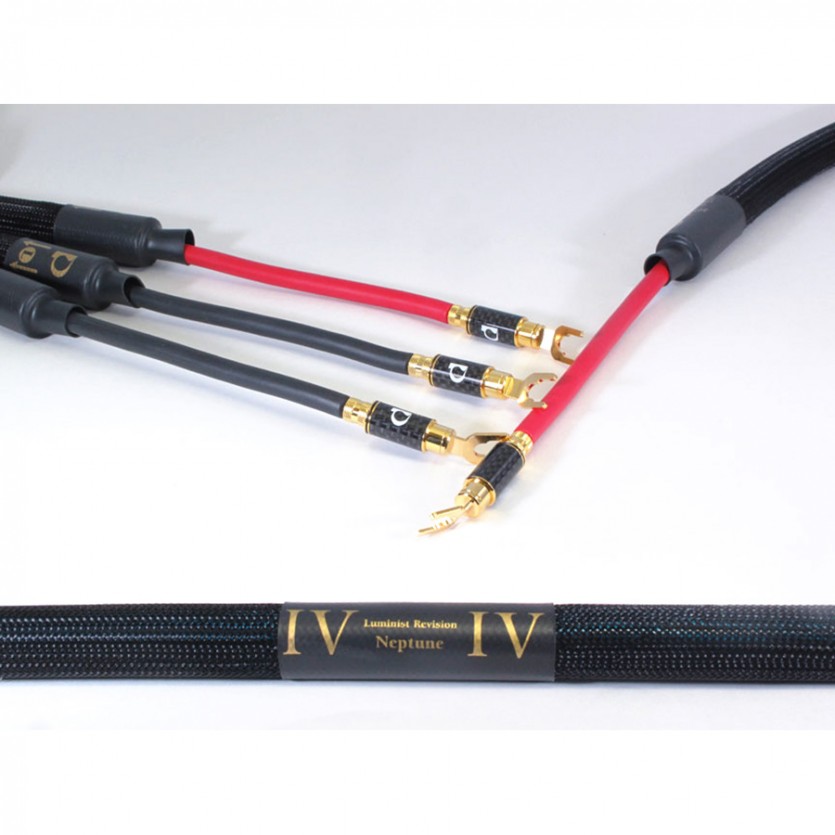

• Purist's newly designed spade or banana!


These are our best connectors yet! They are crafted from beryllium copper with silver plating and then a final gold plating. Additional spade or banana tips can be purchased through your dealer.



Or, you might consider:

• WBT Spades

• WBT Bananas


If your system demands a custom configuration, please contact us. We're able to custom-build to fit your needs. All Neptune Speaker Cables come packaged in a handsome soft case.


Understanding Your Cables


Determine the Right and Left Channels
Right R.jpg
Left L.jpg
Single Channel S.jpg

Determine Positive and Negative
Positive Red Lead Purple Lead
vertical biwire only
Negative Black Lead Blue Lead
vertical biwire only

Cable Specifications


Neptune Speaker/Bi-Wire Specifications
Conductor SCC
Metals Cu
Dielectric Material P.E.
Gauge (effective) 7 AWG
Dampening Material Fluid
Current Capacity (DC) 74
Resistance 0.000999Ω/FT
Estimated Break-In Time 300 Hours
Cable Diameter (Speaker) 3/4 Inch
Cable Diameter (Bi-Wire) 7/8 Inch
Connector Type Spade/Banana or Custom
Material Treatment Triple (3x) Cryomagⓒ
