스피커 케이블 25th Anniversary Interconnect Cable

형식 인터커넥트 케이블

목록으로

본문

Detail view

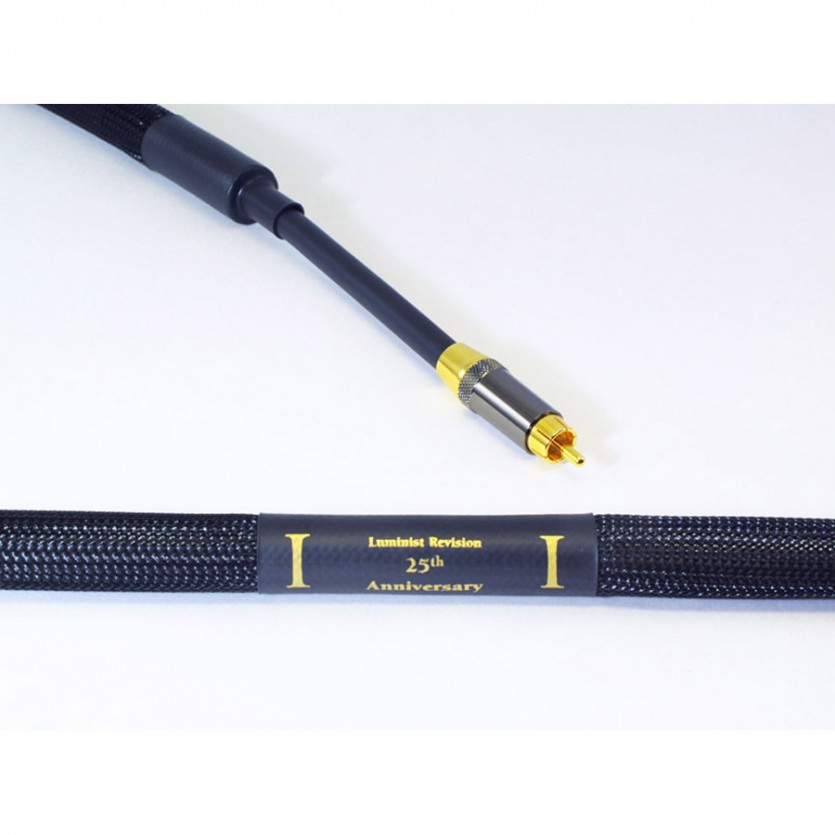

The 25th Anniversary line of Interconnects represent everything we have learned from over 25 years of hand crafting the best cables possible! Everything from the single crystal silver conductors to the advanced Ferox dampening let these cables vanish in your system and deliver the music! The slender sleek design allows for easy installation in tighter spaces! They are available in Single-Ended (RCA) and Balanced (XLR) configurations. If your system demands a custom configuration, please contact us. We're able to custom-build to fit your needs!

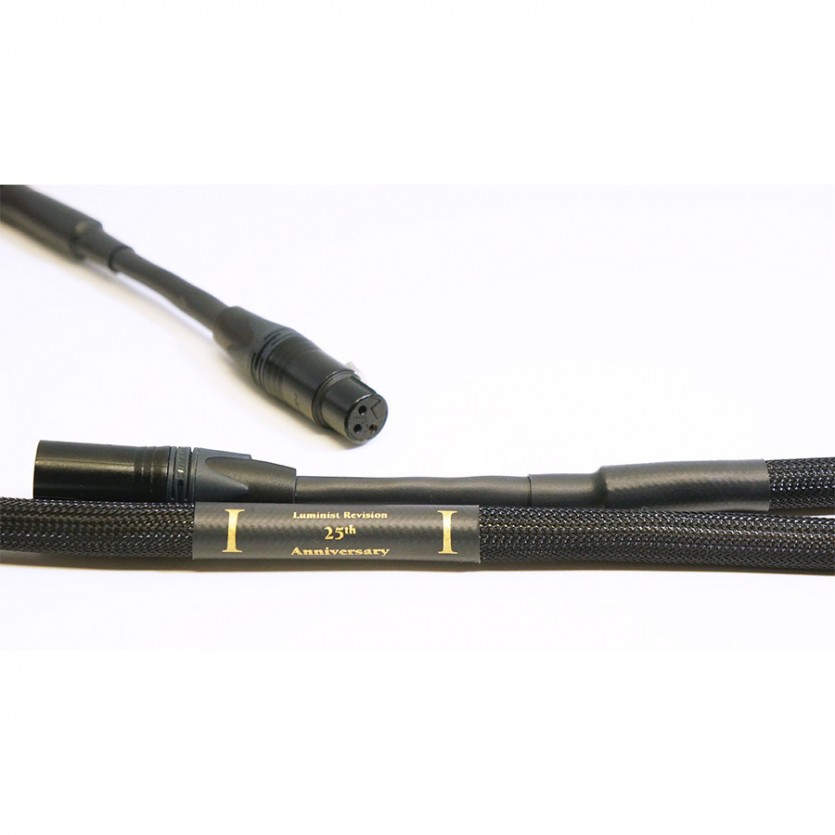

As a part of Purist Audio Design's Luminist Revision, We redesigned and greatly improved the RCA connectors using beryllium copper and increasing the thickness of the gold plating. We also greatly improved the XLR connectors by using beryllium copper with gold plating on the pins.

All 25th Anniversary cables come packaged in a handsome soft case.

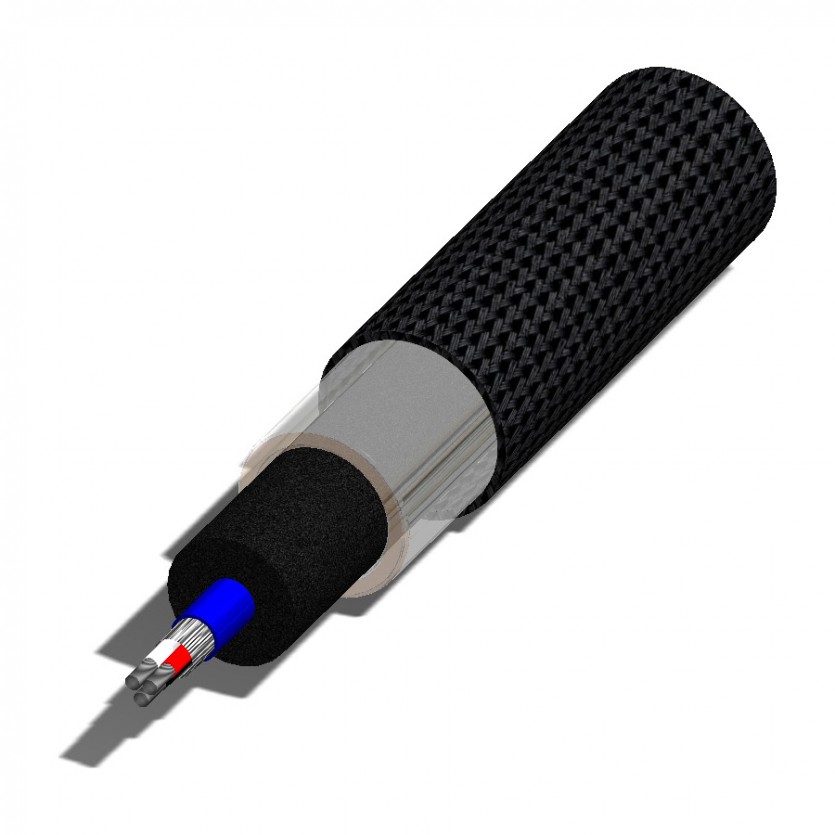

Cable Specifications


25th Anniversary Interconnect Technical Specifications
Conductor SCS
Metals Ag
Shielding Braid 100%
Dielectric Material PTFE
Gauge (effective) 24 AWG
Dampening Material Ferox
Capacitance 20 pF/FT (pin to shield)
Resistance 0.072 Ω/m (conductor)
Estimated Break-In Time 300 Hours
Cable Diameter 1/2" OD
Connector Type Gold RCA / Gold 3-Pole XLR
Material Treatment Triple (3x) Cryomagⓒ
