포노 케이블 DIAMOND REVISION CORVUS PHONO CABLES

형식 포노 케이블
심선 재질 Copper
댐핑제 Ferox
단자 RCA, XLR, DIN

목록으로

본문

Detail view

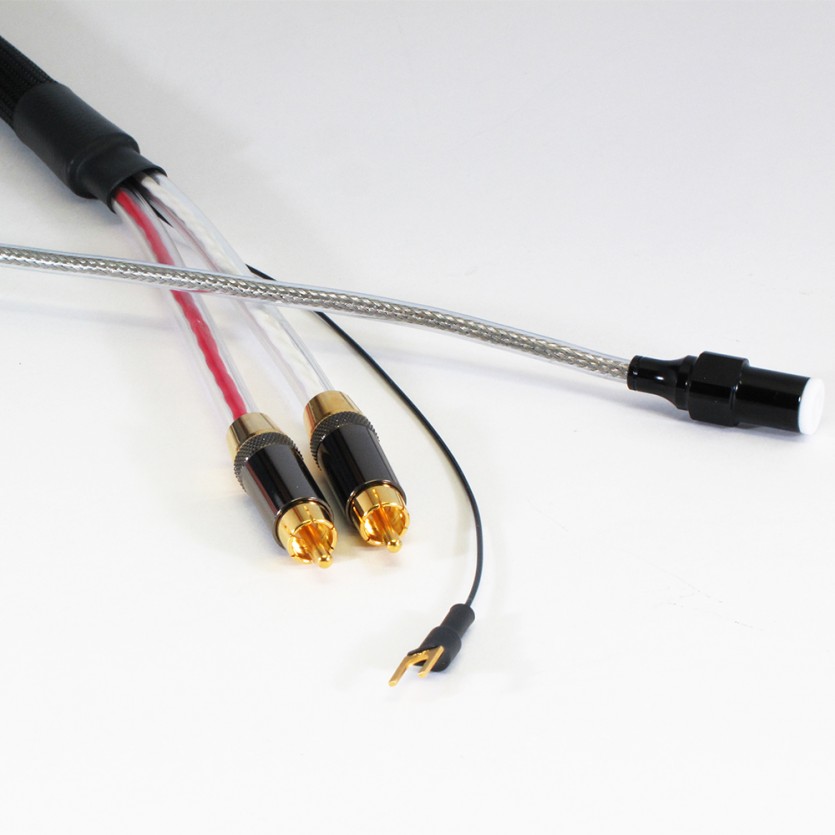

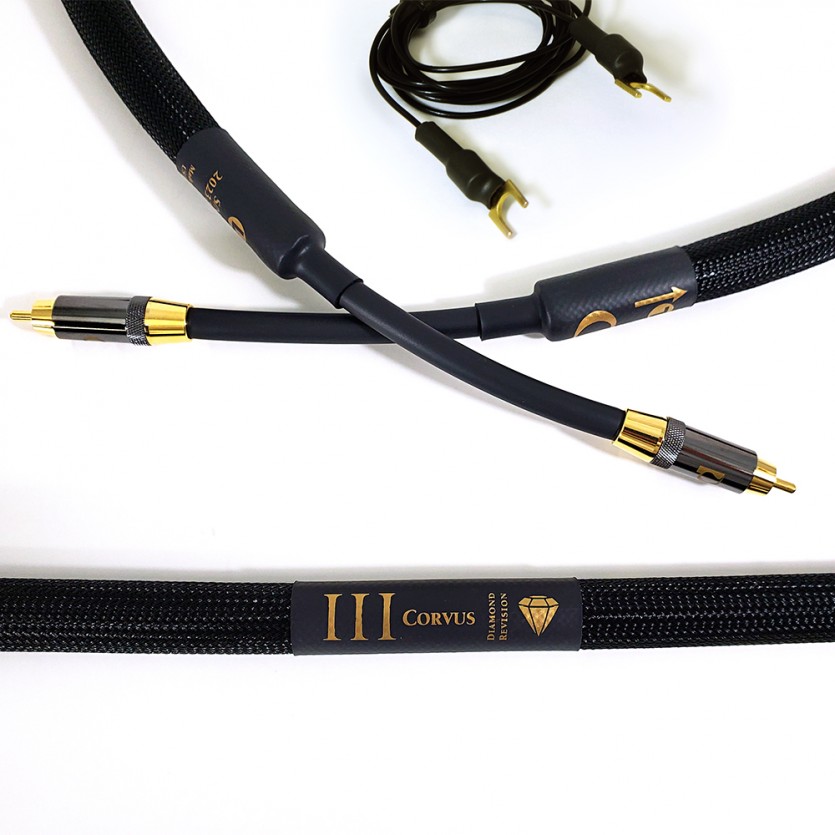

The Corvus line of Phono Cables are very unique in that they employ single crystal copper conductors and Ferox dampening material to give amazing tonality warmth and depth! They are available in standard phono interconnects (RCA to RCA & XLR to XLR) and tone-arm cables (Din to RCA & Din to XLR). If your system demands a custom configuration, please contact us. We're able to custom-build to fit your needs!

As a part of Purist Audio Design's Diamond Revision, we redesigned and greatly improved the RCA connectors using beryllium copper and increasing the thickness of the gold plating. We also greatly improved the XLR connectors by using beryllium copper with gold plating on the pins.

All Corvus cables come packaged in a handsome soft case.

Corvus Phono Technical Specifications
ConductorsSCC
MetalsCopper
ShieldingFoil 100%
Dielectric MaterialP.P.
gauge (effective)22 AWG
Dampening MaterialFerox
Capacitance28 pF/FT (pin to shield)
Resistance0.053 Ω/m (conductor)
Estimated Break-In Time250 Hours
Cable Diameter5/8" OD
Connector TypePhono RCA /Phono XLR or Din
Material TreatmentTriple (3x) Cryomag©
