포노 케이블 DIAMOND REVISION VENUSTAS PHONO CABLES

형식 포노 케이블
심선 재질 Ag, Cu, Au
댐핑제 Ferox
단자 RCA, XLR, DIN

목록으로

본문

Detail view

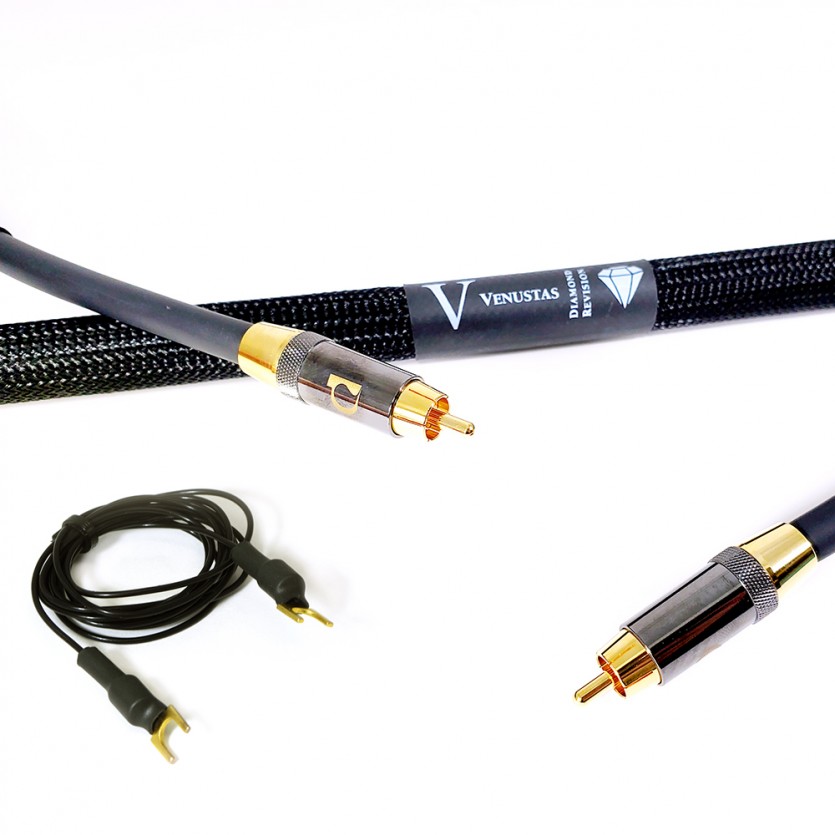

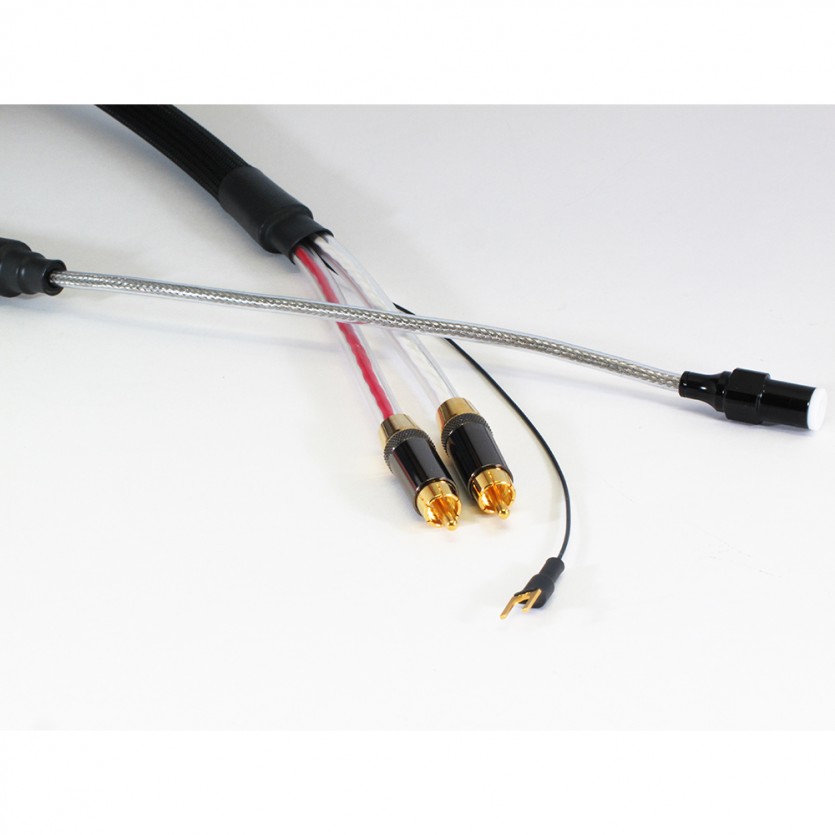

The Venustas line of Phono Cables possesses refined engineering, and the artistry of human touch. Re-engineered with a high quality wire to allow a more flexible design, it also possesses improved metallurgy. The Venustas achieves superior RMF, EMF, EMI noise reduction, and reduce vibration even better than before. They are available in standard phono interconnects (RCA to RCA & XLR to XLR) and tone-arm cables (Din to RCA & Din to XLR). If your system demands a custom configuration, please contact us. We're able to custom-build to fit your needs!

As a part of Purist Audio Design's Diamond Revision, We redesigned and greatly improved the RCA connectors using beryllium copper and increasing the thickness of the gold plating. We also greatly improved the XLR connectors by using beryllium copper with gold plating on the pins.

All Venustas cables come packaged in a handsome soft case.

Venustas Phono Technical Specifications
ConductorsAlloy
MetalsAg/Cu/Au
ShieldingBraid 100%
Dielectric MaterialTeflon
gauge (effective)22 AWG
Dampening MaterialFerox
Capacitance40 pF/FT (pin to shield)
Resistance0.053 Ω/m (conductor)
Estimated Break-In Time250 Hours
Cable Diameter5/8" OD
Connector TypePhono RCA /Phono XLR or Din
Material TreatmentTriple (3x) Cryomag©
