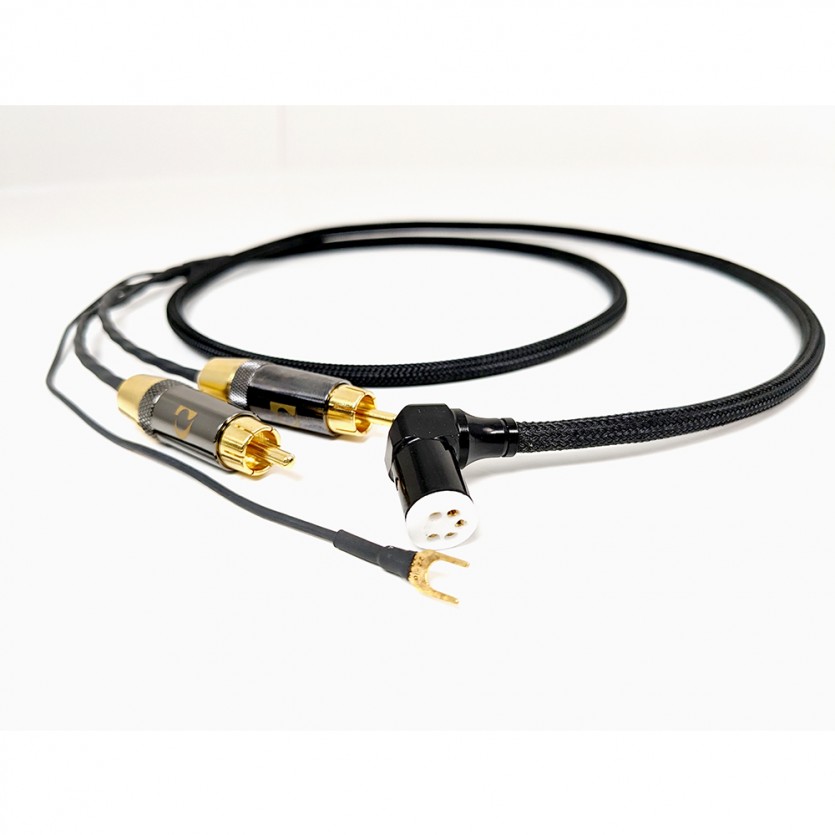

The Jade line of Phono Cables are crafted with two important criteria: exquisitely detailed musical sound and a phenomenal price. The cables utilize alloy conductors of copper with a santoprene dielectric. They are available in standard phono interconnects (RCA to RCA & XLR to XLR) and tone-arm cables (Din to RCA & Din to XLR). If your system demands a custom configuration, please contact us. We're able to custom-build to fit your needs!

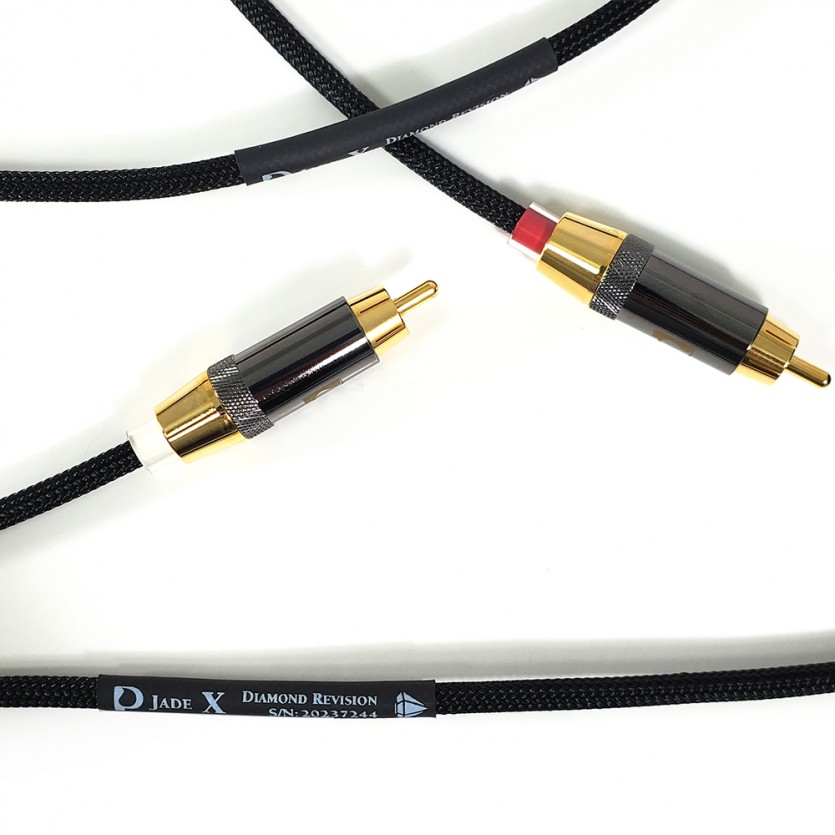

As a part of Purist Audio Design's Luminist Revision, we redesigned and greatly improved the RCA connectors using beryllium copper and increasing the thickness of the gold plating. We also greatly improved the XLR connectors by using beryllium copper with gold plating on the pins.
All Jade cables come packaged in a handsome soft case.
Jade Phono Technical Specifications | |
Conductors | OFC |
Metals | Cu |
Shielding | Aluminum Mylar |
Dielectric Material | Polypropylene |
Phono RCA/XLR Gauge (effective) | 20 AWG |
Phono Din Gauge (effective) | 24 AWG |
Dampening Material | N/A |
Capacitance | 30 pF/FT (pin to shield) |
Resistance | 0.2876 Ω/m (conductor) |
Estimated Break-In Time | 100 Hours |
Cable Diameter (RCA-RCA/XLR-XLR) | 1/4" OD |
Cable Diameter (Phono Din) | 1/4" OD |
Connector Type | Purist RCA & Purist Modified XLR, or Din |
Material Treatment | Triple (3x) Cryomag© |
