디지털 케이블 DIAMOND REVISION NEPTUNE DIGITAL INTERCONNECTS

형식 디지털 인터 케이블
심선 재질 Copper
댐핑제 Fluid
캐패시턴스 63.21pf (SPDIF)
17.0pf(AES/EBU)
임피던스 75Ω (SPDIF), 110Ω (AES/EBU)

목록으로

본문

Detail view

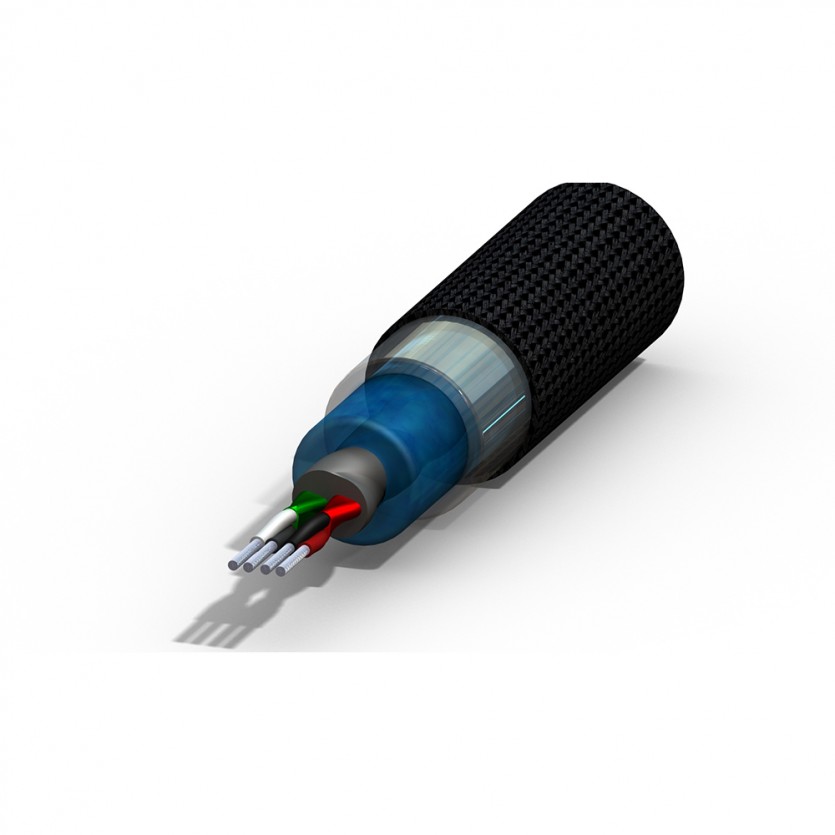

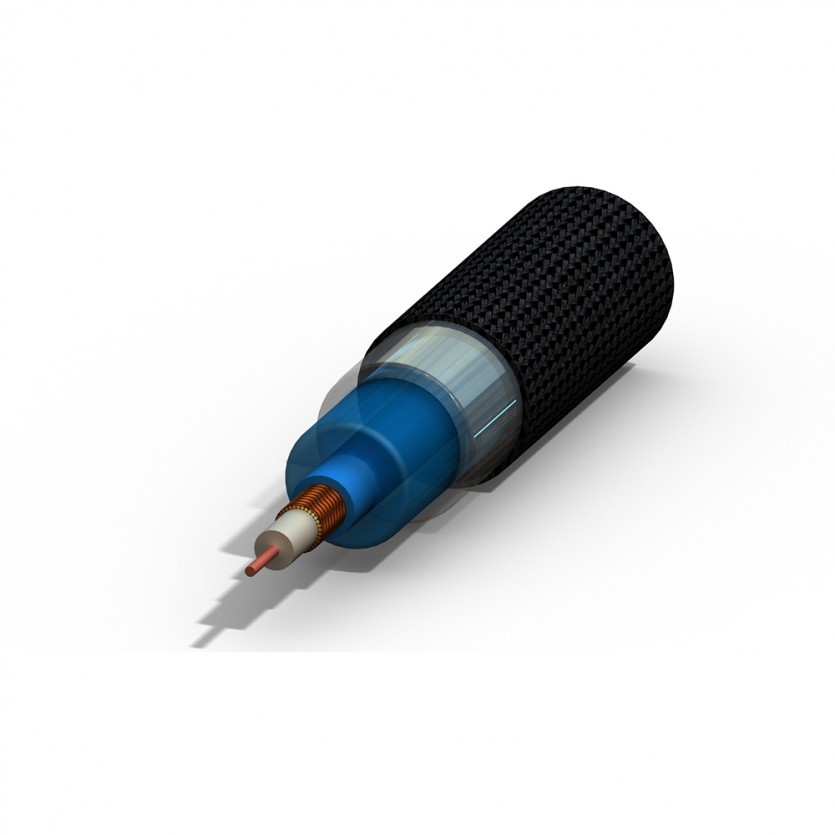

Purist Audio Design's Diamond Revision Neptune Cable line is the pinnacle of our Fluid shielded cables! Every cable in the Neptune line utilizes our improved proprietary Fluid dampening. Our Fluid dampening has long been a favorite of audiophiles for years delivering a warm sound with exquisite mid-range. The interconnects cables are crafted around 24 AWG single crystal copper conductors. Neptune cables deliver a larger soundstage over the Venustas cables with stunning detail in the mid-range! The cables can deliver such impressive musicality, they keep the listener immersed in the music! The digital cables are crafted in both SPDIF (RCA or BNC) with 75 Ω impedance and AES/EBU (XLR) with 110 Ω impedance. Neptune cables deliver a larger soundstage over the Venustas cables with stunning detail in the mid-range!

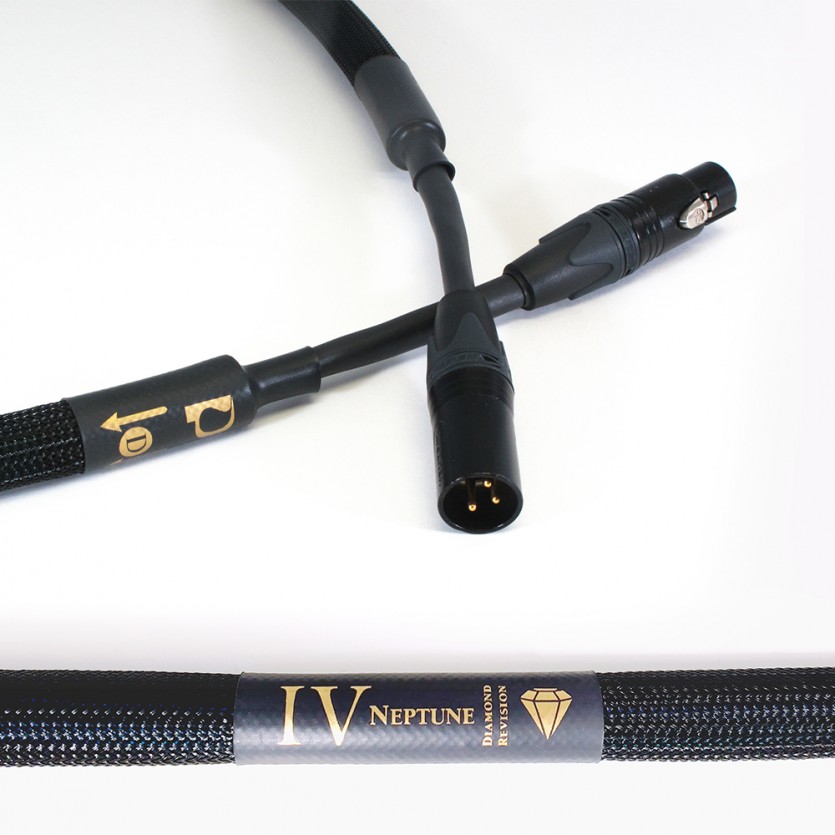

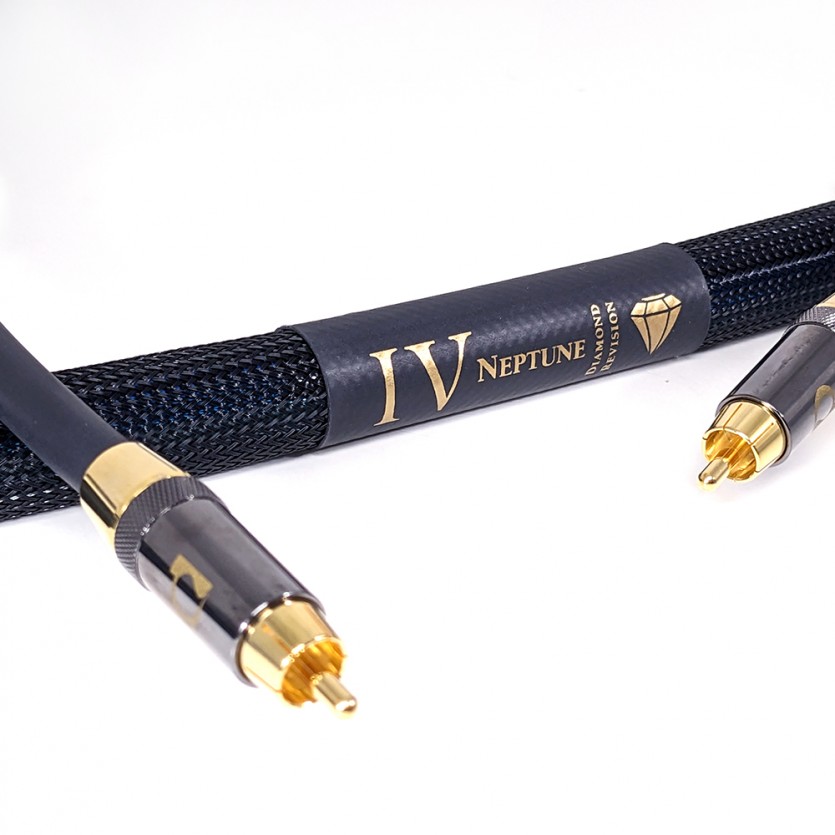

As a part of Purist Audio Design's Diamond Revision, we redesigned and greatly improved the RCA connectors using beryllium copper and increasing the thickness of the gold plating. We also greatly improved the XLR connectors by using beryllium copper with gold plating on the pins.

All Neptune cables come packaged in a handsome soft case.

Neptune Digital Interconnect Specifications
ConductorsCopper
MetalsCopper
Shielding99%
Dielectric MaterialP.E.
gauge (effective)24 AWG
Dampening MaterialFluid
Capacitance SPDIF63.21 pF
Capacitance AES/EBU17.0 pF
Impedance SPDIF75 Ω
Impedance AES/EBU110 Ω
Estimated Break-In Time100 Hours
Cable Diameter5/8" OD
Connector TypePurist RCA (SPDIF) & Modified XLR (AES/EBU)
Material TreatmentTriple (3x) Cryomag©
