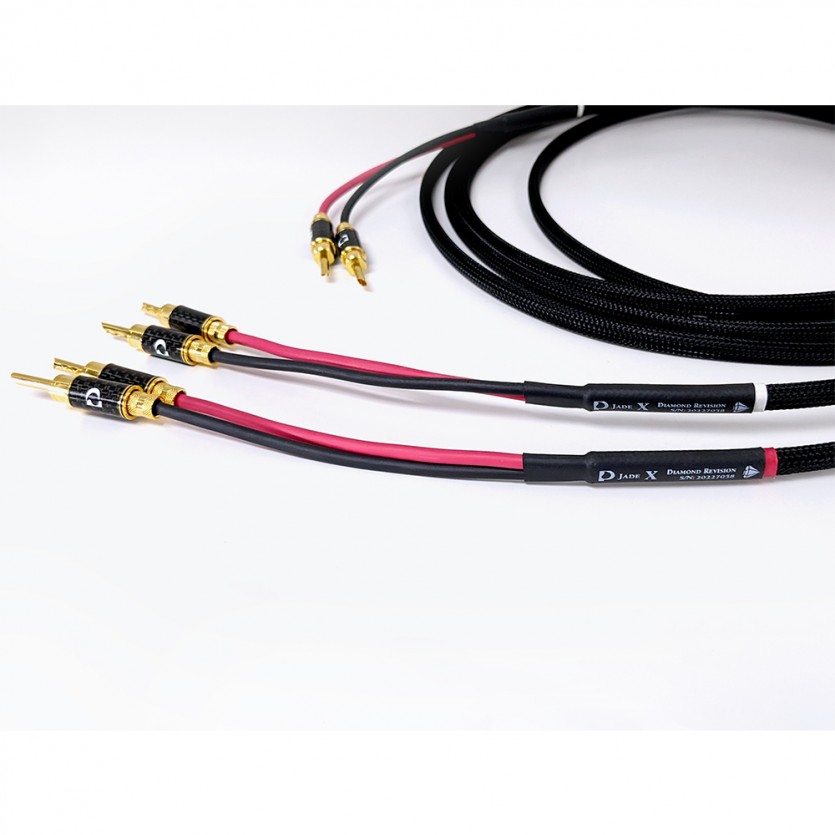

Jade, a precious green stone said to transmit wisdom and clarity, is the modern symbol for Purist Audio Design’s 35th Anniversary. Purist Audio Design, celebrating over 35 years in High End Audio, crafted the Jade line based on decades in product design. A sophisticated entry level into the Diamond Revision, Jade is our first step toward the advancement of the latest in technology and metallurgy. With the Jade line you will find a tremendous energy, clarity, and passion with your music, rounding out your audio system. It offers ultimate flexibility, making it easy to work with in tight set-ups like the previous Vesta and the Genesis lines, but with improved musicality.
These speaker cables come in a two (2) cable set.
The Jade Speaker Cables come standard with:
- Purist's newly designed spade or banana!
These are our best connectors yet! They are crafted from beryllium copper with silver plating and then a final gold plating. Additional spade or banana tips can be purchased through your dealer.
Or, you might consider:
- WBT Spades
- WBT Bananas
If your system demands a custom configuration, please contact us. We're able to custom-build to fit your needs. All Jade Speaker Cables come packaged in a handsome soft case.
Understanding Your Cables
Determine the Right and Left Channels | |
---|---|
Right | Red Band |
Left | White Band |
Single Channel | No Colored Band |
Determine Positive and Negative | ||
---|---|---|
Positive | Red Lead | |
Negative | Black Lead |
Cable Specifications
Jade Speaker Specifications | |
---|---|
Conductors | Oxygen-Free Copper |
Metals | Cu |
Dielectric Material | Polyvinyl chloride |
Gauge (effective) | 12 AWG |
Dampening Material | N/A |
Current Capacity | - |
Capacitance | 41 |
Resistance | 0.001456Ω/FT |
Estimated Break-In Time | 150 Hours |
Cable Diameter | 1/2 Inch |
Connector Type | Purist Spades & Bananas |
Material Treatment | Triple (3x) Cryomag© |
