인터 케이블 DIAMOND REVISION MUSAEUS INTERCONNECTS

형식 인터케이블
심선 재질 Cu
댐핑제 Ferox
단자 RCA, XLR

목록으로

본문

Detail view

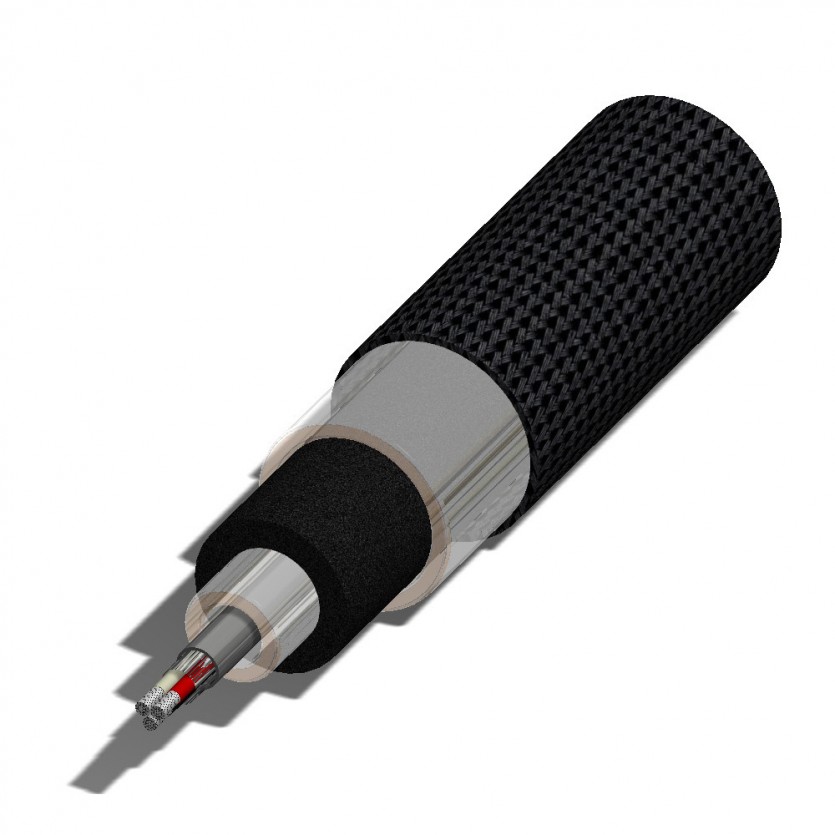

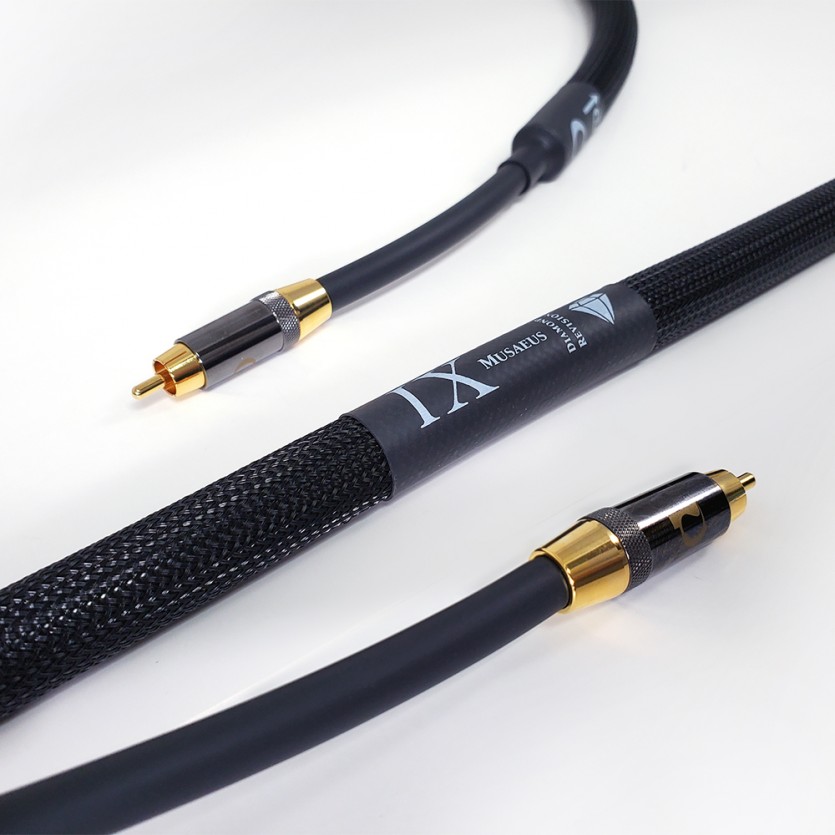

The Musaeus line of Interconnects are our entry-level Ferox dampened cables. Make no mistake, these cables are hand crafted to make your system sing! They are a beautiful example of what Purist Audio Design's engineers and craftsmen can do at a beautiful price point! With the Diamond Revision, we adjusted the stranding in the conductors to improve the detail and musicality of the cable. It continues to be a fantastically well-rounded cable in terms of highs, mids, and lows! They are available in Single-Ended (RCA) and Balanced (XLR) configurations. If your system demands a custom configuration, please contact us. We're able to custom-build to fit your needs!

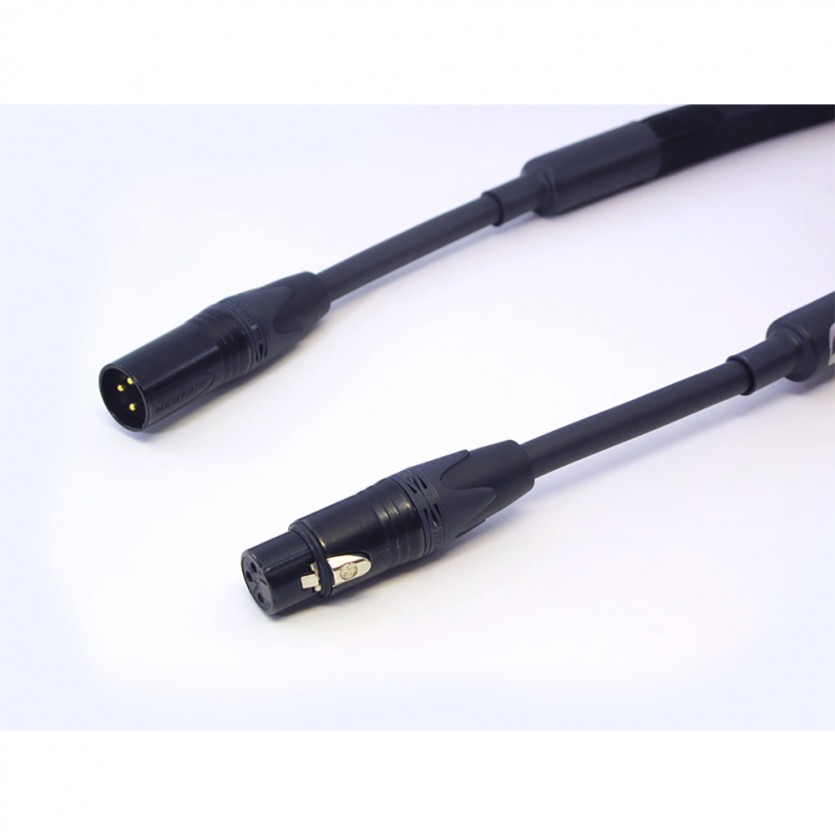

As a part of Purist Audio Design's Diamond Revision, we redesigned and greatly improved the RCA connectors using beryllium copper and increasing the thickness of the gold plating. We also greatly improved the XLR connectors by using beryllium copper with gold plating on the pins.

All Musaeus cables come packaged in a handsome soft case.

Musaeus Interconnect Technical Specifications
ConductorsPCCC
MetalsCu
ShieldingBraid 100%
Dielectric MaterialSantoprene
gauge (effective)24 AWG
Dampening MaterialFerox
Capacitance30 pF/FT (pin to shield)
Resistance0.0842 Ω/m (conductor)
Estimated Break-In Time200 Hours
Cable Diameter5/8" OD
Connector TypePurist RCA & Purist Modified XLR
Material TreatmentTriple (3x) Cryomag©
