The ARCTIC (Halogen Free)
The design aim of The ARCTIC was to produce a very affordable twin lead loudspeaker cable with a very good sonic quality despite its (extremely reasonable) price.
- • The ARCTIC is made of 2 conductor groups, each with 147 x 0.16 mm. strands.
- • The total cross-section area per conductor is 3,31 mm²; close to AWG 12.
- • The conductor material is a very high grade large crystal OFC with a dense pure silver coating.
- • The external dimensions are 12.5 x 6,0 mm.

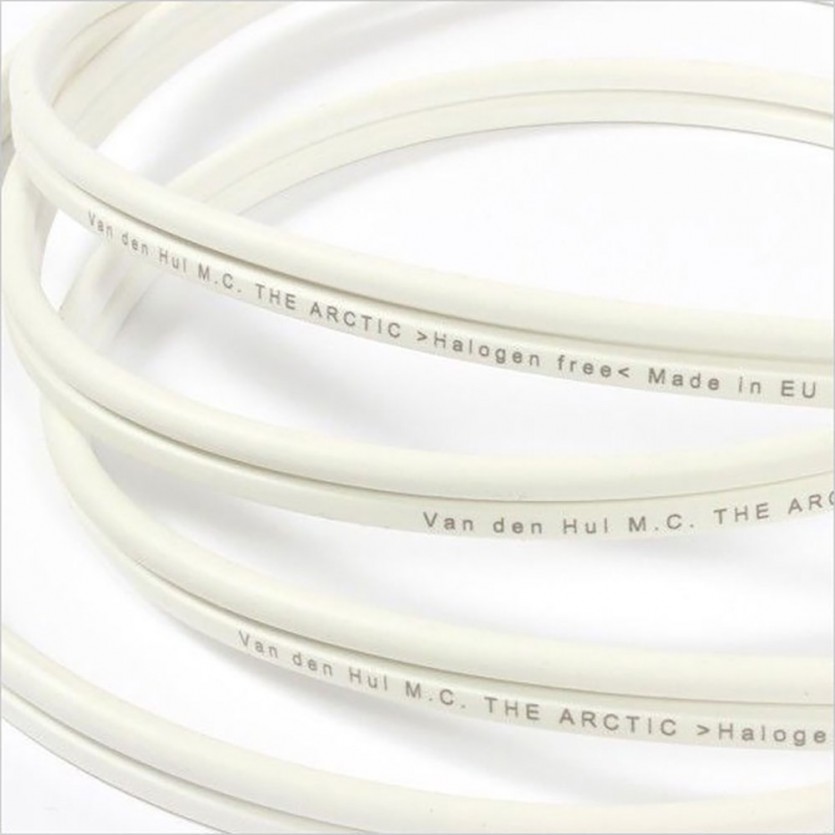

- • The white jacket is made of HULLIFLEX ® 4, a superior insulation material exhibiting a very good mechanical protection and a high chemical stability.
- • The two conductors have different insulator shapes: one is round and the other has two edges with type printing on the flat surface: the most simple polarity finder you can think of.
Packing conditions for the ARCTIC: 100 meters per reel with shipping weight incl. packing box of 320 x 320 x 310 mm.: 11.66 kg.
The ARCTIC (Halogen Free) | |
| material | Silverplated Copper OFCT |
| product category | speaker cable - Twin-lead, Entry-level |
| cable type | Twin conductor |
| conductor material | High purity dense Silver coated high purity OFC |
| design purpose | Loudspeaker cable / Car and general hi-fi applications |
| eff conductor | 2x(3,31 mm² / ~AWG 12 / 147) |
| external diameter | 12.5 mm. wide; 6.0 mm. thick |
| jacket colors | White |
| resistance | 0.66 Ohm/100 m |
| insulation | HULLIFLEX ® 3 / 300 Vrms min. |

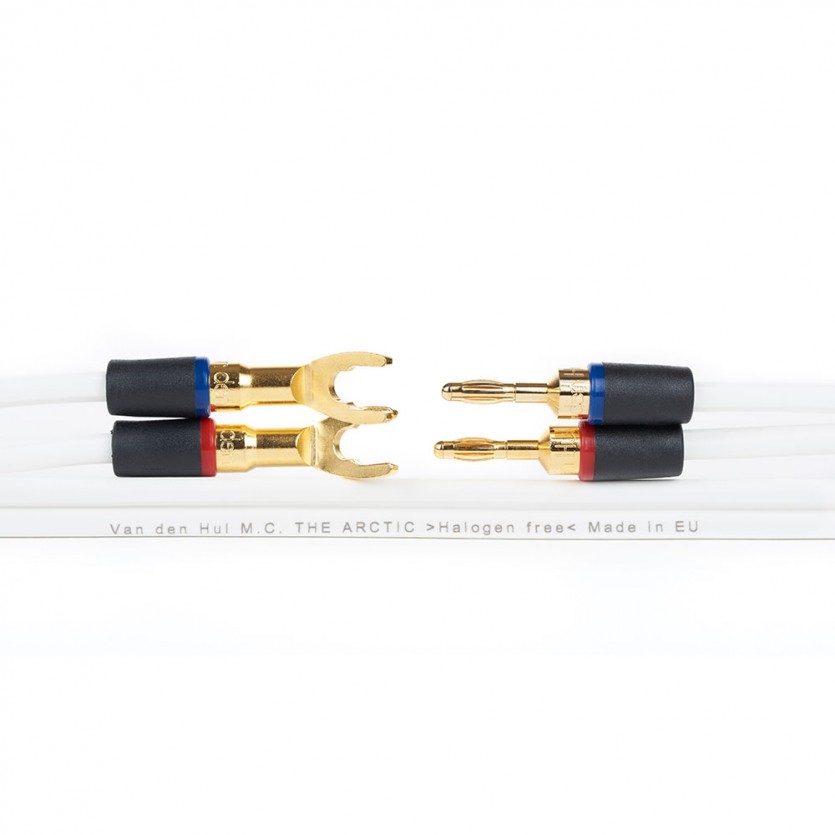

| connector types | Our 4.0 mm. Ø cable entrance diameter Bus type Universal Speaker Connectors or our 6.5 mm. Ø cable entrance diameter BERRI Bus Connectors or our DIY Screw-On Speaker Connectors; All custom mountable on ordered lengths. |
| standard sales units | 100 m. reels; With connectors mounted to specifications: any length; Without connectors: please consult your van den Hul dealer or the van den Hul distributor in your country. |
