The Clearwater 스피커 케이블

형식 스피커 케이블

목록으로

본문

Detail view

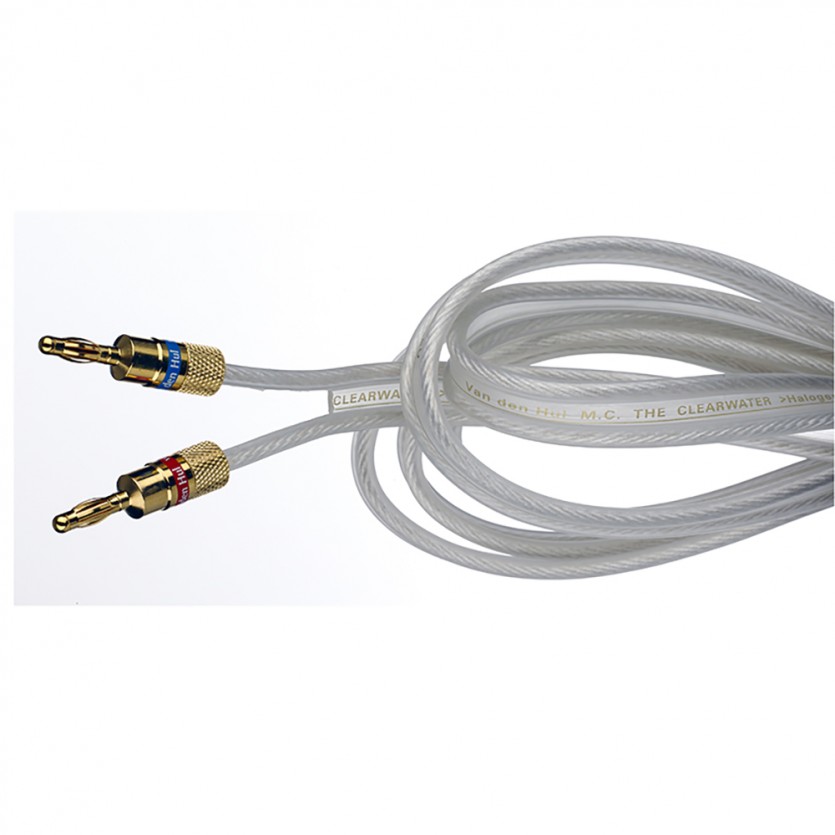

The CLEARWATER (Halogen Free)

With the design of The CLEARWATER, it was our intention to produce the best match between quality and price.

The decision was taken to work with 2 groups of strands with a conductor size of AWG 14; this because in many situations the distance between the amplifier and the loudspeakers is limited.

  • • Therefore a twin-lead construction was made with 2 x 98 strands of a dense very pure silver coated Matched Crystal (MC) OFC.
  • • The two conductor groups are twisted in opposite directions.
  • • The resistance of each lead is: 0.9 Ohm/100 meter.
  • • The capacitance between the two conductors is: 17.5 pF/meter.

Sonically this cable is a great product with a very balanced overall quality. There is no harshness and the spatial reproduction is superior.

Just as its name says: "The sound is as clear as water"

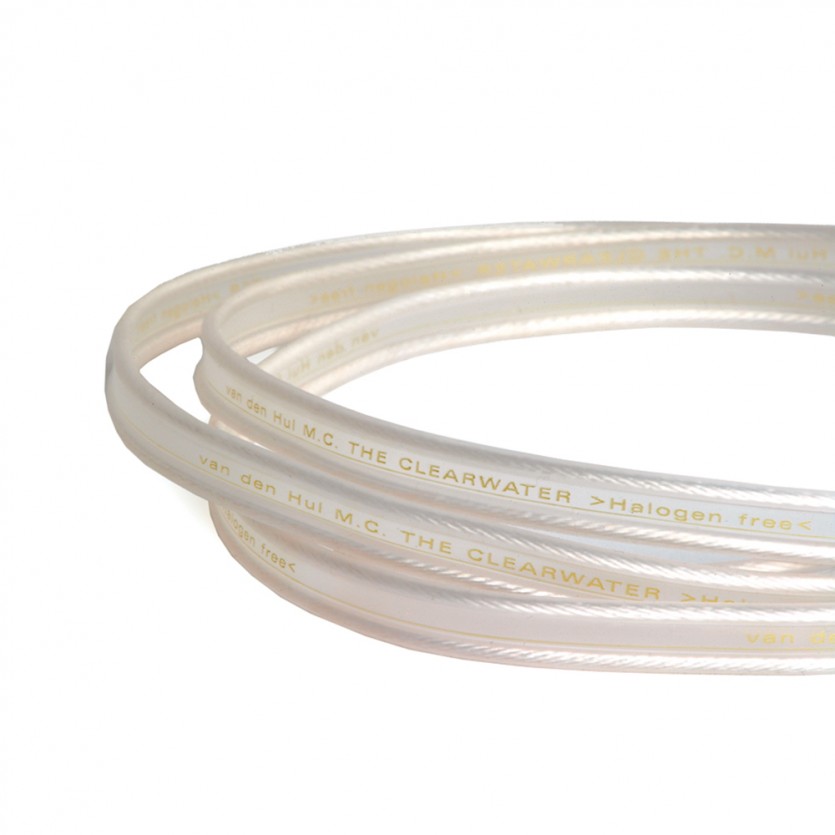

The cable’s jacket is made of transparent HULLIFLEX ® 3, a robust halogen free material excellently capable of shielding the copper conductors from the chemically threatening outside world.
The jacket on each lead is different in shape and the flat middle section in between has a printing on one side: both properties are easy polarity finders. Type printing at 25 cm. (10") distance makes cutting of specified lengths very easy.

Packing: 100 meter per reel in a box with external dimensions of 320 x 320 x 310 mm. and with a total shipping weight of 8.8 kg.

The CLEARWATER (Halogen Free)

materialSilverplated Copper OFCT
product categoryspeaker cable - Twin-lead, Entry-level
cable typeTwin conductor
conductor materialHigh purity dense Silver coated high purity Matched Crystal OFC
design purposeLoudspeaker cable
eff conductor2x(1.97 mm² / ~AWG 14 / 98)
external diameter15 mm. wide; 4.0 mm. thick
jacket colorsTransparent
resistance0.9 Ohm/100 m.
capacitance17.5 pF/m.
insulationHULLIFLEX ® 3 / 300 Vrms min.
connector typesOur 3.0 mm. Ø cable entrance diameter Bus type Universal Speaker Connectors or our 4.5 mm. Ø cable entrance diameter BERRI Bus Connectors or our DIY Screw-On Speaker Connectors; All custom mountable on ordered lengths.
standard sales units100 m. reels; With connectors mounted to specifications: any length; Without connectors: please consult your van den Hul dealer or the van den Hul distributor in your country.
