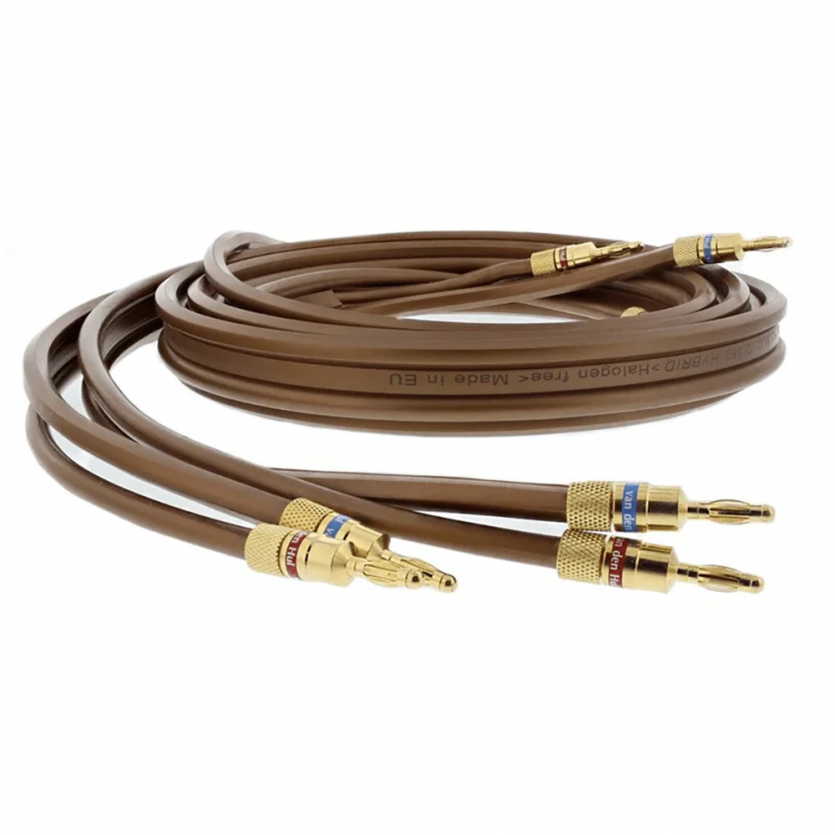

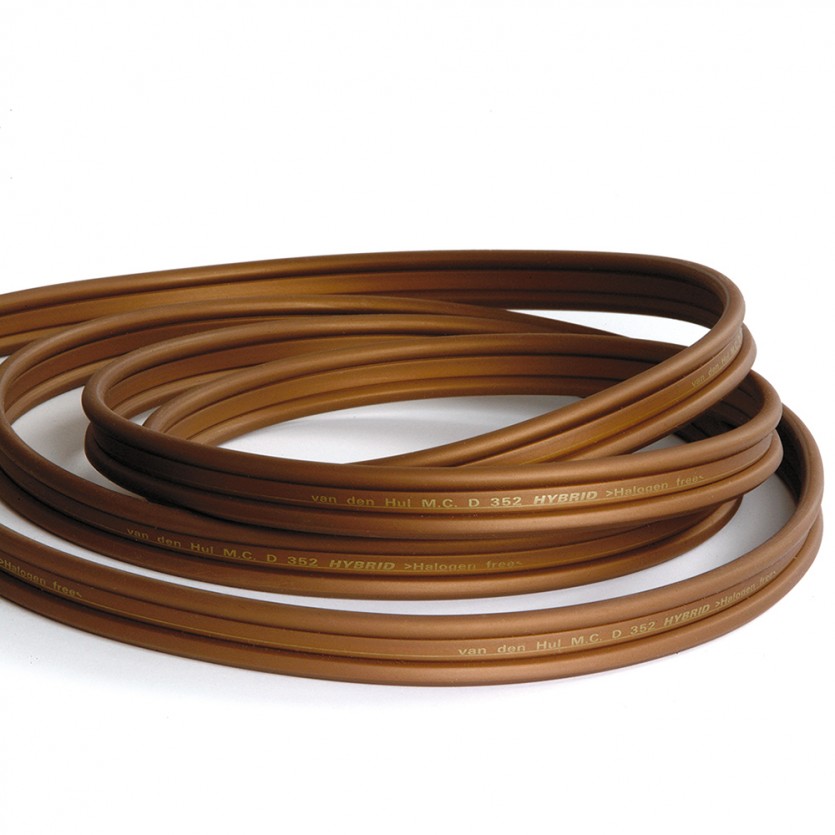

The D - 352 HYBRID (Halogen Free)
This twin lead brown metallic colored speaker cable is designed to provide a very high transfer quality at a moderate price.
- • Each lead is made of 296 x 0.15 mm. Matched Crystal (MC) high purity OFC strands with a dense and very pure silver coating.
- • Covering the two conductors an extra layer saturated with Linear Structured Carbon ® is applied to improve the sonic performance and to transform the radiated magnetic field into an audio signal again.
- • The cable jacket is made of our HULLIFLEX ® 3, a very flexible and mechanically superb insulation material.
- • The resistance per lead is: 0.34 Ohm/100 meter.
- • Total metal cross-section area for each conductor is 5.23 mm², equalling AWG 10. The capacitance between the 2 leads is: 32.5 pF/meter.
- • The plus and minus leads are different in jacket-shape with printing in the flat middle section. Both properties are easy polarity-finders.
- • Type printing at 25 cm. (10") distance makes cutting of specified lengths very easy.
Our 4.0 mm. Ø cable entrance diameter Bus type Universal Speaker Connectors and our DIY Screw-On Speaker Connectors are excellently suited for the D - 352 HYBRID.
Packing conditions: 50 meters per reel with a total shipping weight of 10.4 kg. incl. the packing box with external dimensions in mm.: 320 x 320 x 310.
The D - 352 HYBRID (Halogen Free) | |
| material | Hybrid |
| product category | car hifi - Speaker cable / speaker cable - Twin-lead, Mid-range |
| cable type | Twin conductor |
| conductor material | HYBRID: High purity dense Silver coated high purity Matched Crystal OFC + Linear Structured Carbon ® saturated layer(s) |
| design purpose | Loudspeaker cable |
| eff conductor | 2x(5.23 mm² / AWG 10 / 296) |
| external diameter | 21.0 mm. wide; 6.5 mm. thick |
| jacket colors | Brown metallic |
| resistance | 0.34 Ohm/100 m. |
| capacitance | 32.5 pF/m. |
| insulation | HULLIFLEX ® 3 / 300 Vrms min. |
| connector types | Our 4.0 mm. Ø cable entrance diameter Bus type Universal Speaker Connectors or our 8.3 mm. Ø cable entrance diameter BERRI Bus Connectors or our DIY Screw-On Speaker Connectors; All custom mountable on ordered lengths. |
| standard sales units | 50 m. reels; With connectors mounted to specifications: any length; Without connectors: please consult your van den Hul dealer or the van den Hul distributor in your country. |
