The Magnum Hybrid 스피커 케이블

형식 스피커 케이블

목록으로

본문

Detail view

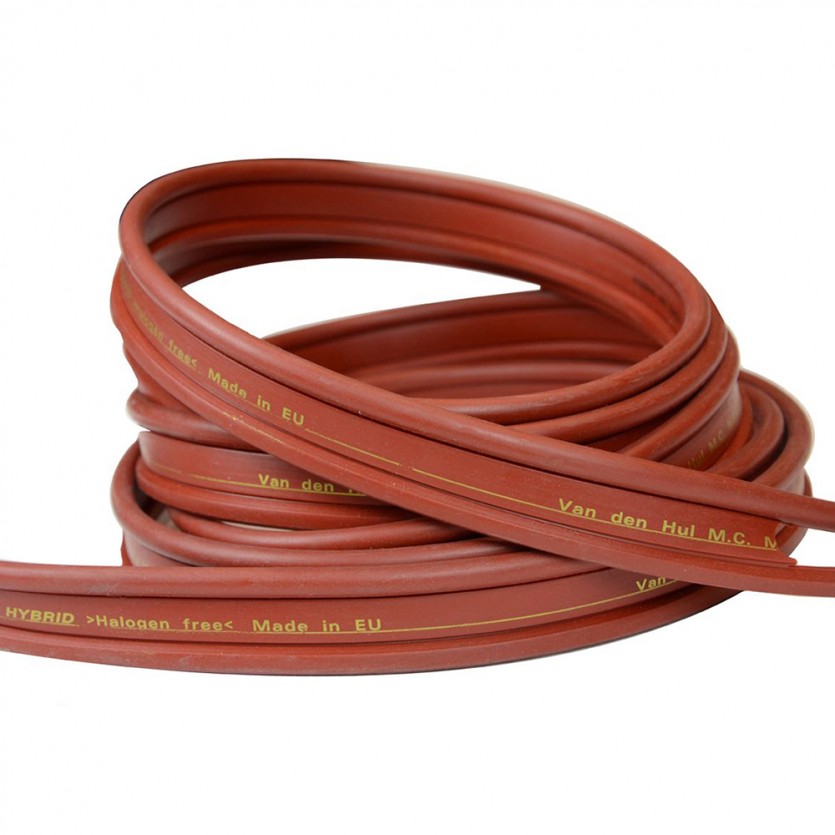

The MAGNUM HYBRID (Halogen Free)

This very attractive dark-red colored mat finished twin-lead speaker cable is designed to produce the best transfer quality at an affordable price.

  • • Each lead consists of 483 x 0.15 mm. high purity Matched Crystal (MC) OFC strands with a dense and very pure silver coating.
  • • The resistance per lead is just: 0.21 Ohm/100 meter.
  • • The metal cross-section area for each conductor is: 8.54 mm², equalling AWG 8.
  • • The capacitance between the 2 leads is a nice and low 27 pF/meter.
  • • Covering the 2 conductors you will find an extra Linear Structured Carbon ® saturated layer.
  • • This layer dramatically improves the sonic qualities of The MAGNUM HYBRID.
  • • The cable jacket is made of our HULLIFLEX ® 5, a very flexible and mechanically superb insulation material.
  • • The plus and minus leads are different in jacket shape with gold colored printing in the flat middle-section. Both properties are easy polarity finders.
  • • Type printing at 25 cm. (10") distance makes cutting of specified lengths very easy.

Packing conditions: 50 meters per reel in a 320 x 320 x 310 mm. box with a total shipping weight of 14.7 kg.

The MAGNUM HYBRID (Halogen Free)

materialHybrid
product categorycar hifi - Speaker cable / speaker cable - Twin-lead, Mid-range
cable typeTwin conductor
conductor materialHYBRID: High purity dense Silver coated high purity Matched Crystal OFC + Linear Structured Carbon ®saturated layer(s)
design purposeLoudspeaker cable
eff conductor2x(8.54 mm² / ~AWG 8 / 483)
external diameter27.0 mm. wide; 7.5 mm. thick
jacket colorsDark-red
resistance0.21 Ohm/100 m.
capacitance27 pF/m.
insulationHULLIFLEX ® 5 / 300 Vrms min.

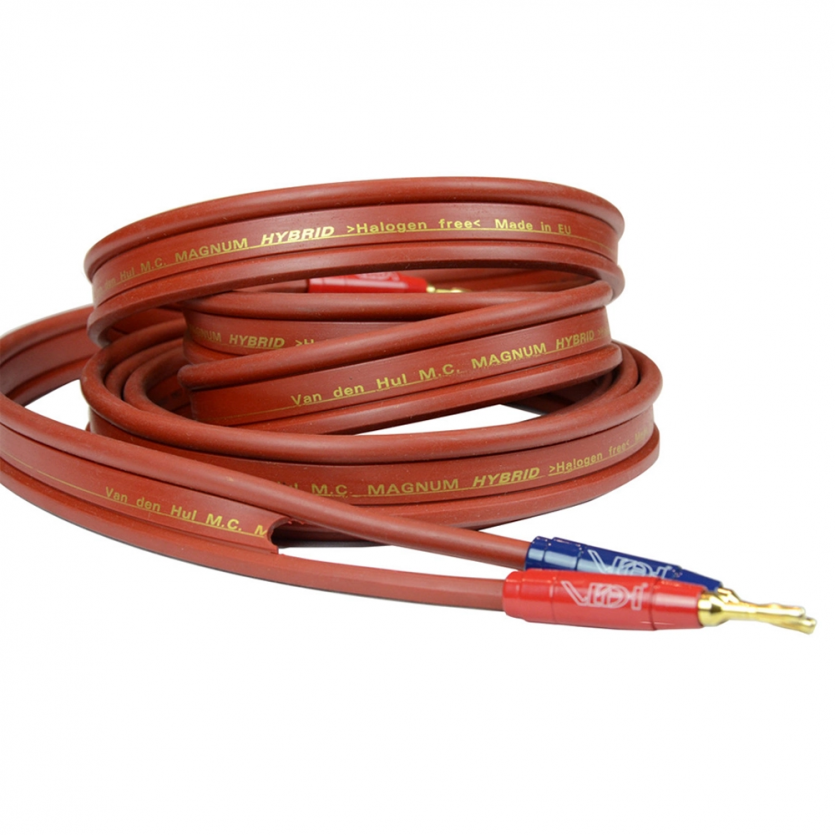

connector typesOur 6.5 mm. Ø cable entrance diameter Bus type Universal Speaker Connectors or our 8.3 mm. Ø cable entrance diameter BERRI Bus Connectors; Custom mountable on ordered lengths.
standard sales units50 m. reels; With connectors mounted to specifications: any length; Without connectors: please consult your van den Hul dealer or the van den Hul distributor in your country.
