SCS-4 스피커 케이블

형식 스피커 케이블

목록으로

본문

Detail view

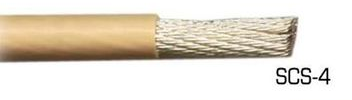

SCS - 4 (halogen free)

The SCS - 4 comes very close to the sonic qualities of the SCS - 2.

  • • The size is 4 gauge with 133 strands and a total conductor cross-section area of 21.6 mm².
  • • The external diameter is 8.10 mm.
  • • The resistance is a remarkably low 0.80 Ohm/km.
  • • Each strand is made of a very high grade Matched Crystal (MC) OFC with a dense and very pure silver coating in an extrusion process.
  • • The jacket of the SCS - 4 is made of beige PTFE with “ van den Hul SCS - 4 ” printing in brown colour.
  • • The insulation voltage rating is 1000 Volt RMS but the actual test voltage is 3500 Volt RMS.
  • • The tonal quality is superb. Especially the smooth high frequency resolution is exceptional. Also the powerful bass is fabulous.

Shipping weight of 50 meter SCS - 4 is 10.6 kg. without packing.

We advice to use our special 8.0 mm. Ø cable entrance diameter Bus type Universal Speaker Connectors to connect the SCS - 4 to other equipment.

On request we do mount these connectors with some extra charge.

Packing: depending on ordered length.

SCS - 4 (halogen free)

materialSilverplated Copper OFC
product categoryspeaker cable - Single-lead, Mid-range / internal wiring
cable typeSingle wire, multistrand
conductor materialHigh purity dense Silver coated high purity Matched Crystal OFC
design purposeLoudspeaker cable
eff conductor21.6 mm² / ~AWG 4 / 133
external diameter8.10 mm.
jacket colorsCream
resistance0.80 Ohm/km.
insulationPTFE / 1000 Vrms / 3500 Vrms
connector typesOur 8.0 mm. Ø cable entrance diameter Bus type Universal Speaker Connectors or our 8.3 mm. Ø cable entrance diameter BERRI Bus Connectors; Custom mountable on ordered lengths.
standard sales units50 m. reels; 1.0, 1.5, 2.0 and 2.5 meter sets (1 set = 4 leads including connectors); Furthermore available in any specified length.
