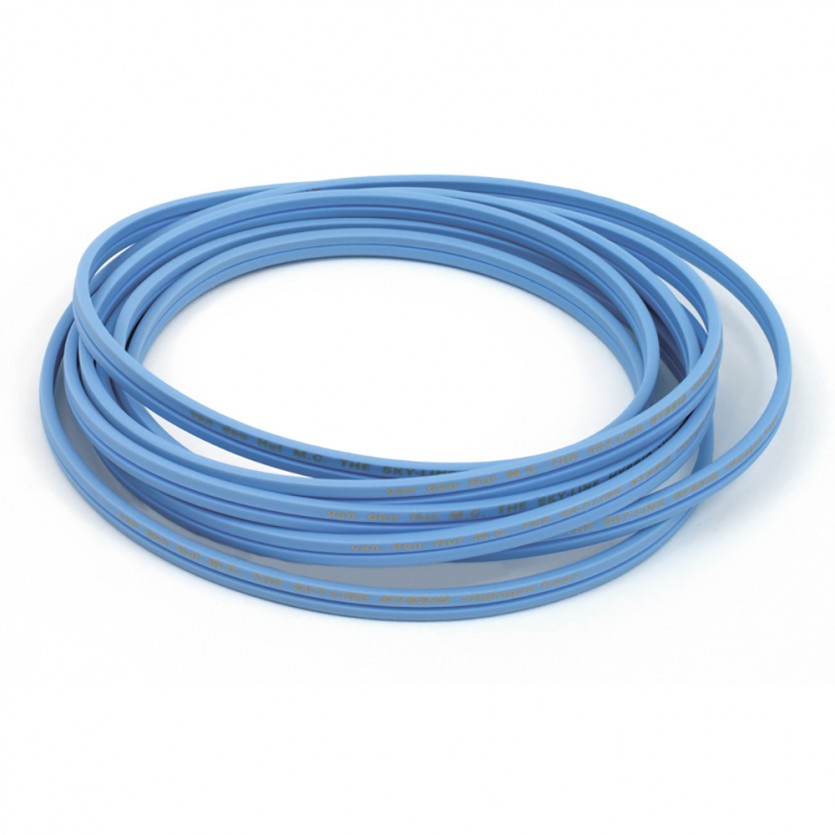

The SKYLINE HYBRID (Halogen Free)

The SKYLINE HYBRID is an elegant small twin conductor loudspeaker cable with outstanding qualities.

The SKYLINE HYBRID is a low priced member of our AWG 14 twin-lead loudspeaker cable range which consists of The GOLDWATER, The CLEARWATER, The SNOWLINE and The SKYLINE HYBRID.

The SKYLINE HYBRID is the only Hybrid cable in this range:
Each lead combines 19 high purity Oxygen Free Copper strands with a coating containing our Linear Structured Carbon ®;
This combination of metal and carbon (hybrid technology) has excellent properties when it comes to resolution and neutrality, and therefore is standard applied in all of our heavier loudspeaker cables.

The SKYLINE HYBRID has been designed to be less flexible than its above mentioned colleagues, reflecting its aim to be used in more permanent high quality loudspeaker wiring applications.

The SKYLINE HYBRID is 8.5 mm. wide and 3.4 mm. thick.
Each of its two 2.04 mm² conductors exhibit a resistance of 0.84 Ohm/100 m.

The cable’s jacket is made of sky-blue coloured HULLIFLEX ® 3, a robust halogen free material excellently capable of shielding the copper conductors from the chemically threatening outside world.
The cable’s sky-blue color quite accurately represents its sonic character: as clear as a cloudless blue sky.

The insulation of both conductors has a different shape: one is round and the other has two edges with type printing on the flat surface: the most simple polarity finder you can think off. Type printing at 25 cm. (10") distance facilitates cutting of lengths.

The SKYLINE HYBRID is available:

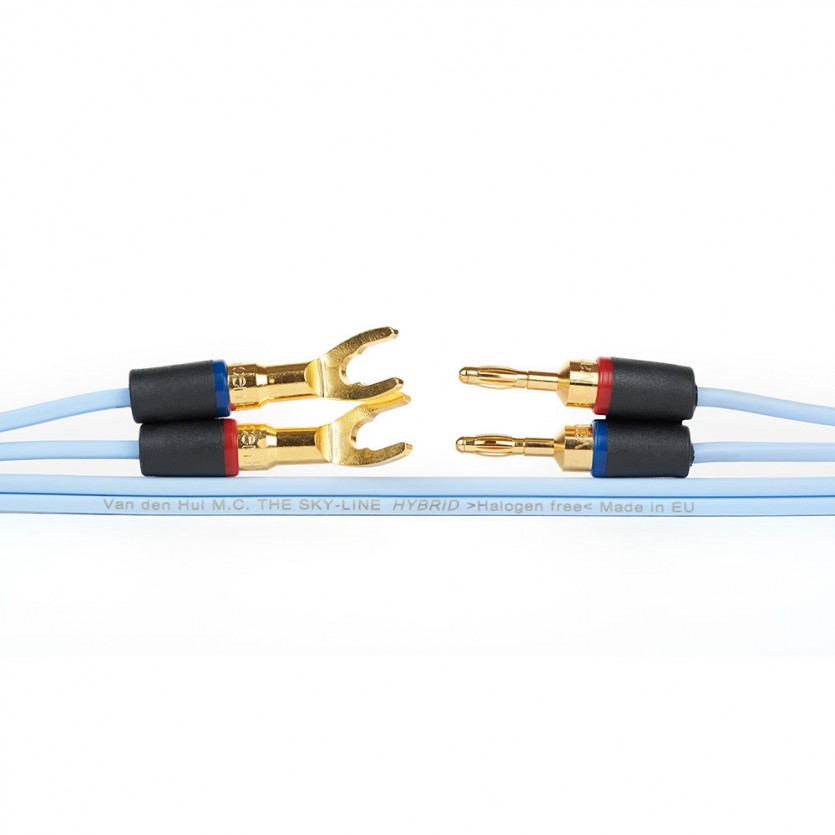

  • • In any length with, as desired, either our 3.0 mm. Ø cable entrance diameter Bus type Universal Speaker Connectors or our DIY Screw-On Speaker Connectors mounted.
  • • On 100 m. reels:

Shipping: 1 x 100 m. reel in a 275 x 275 x 220 mm. box with a total shipping weight of 6.2 kg.
2 x 100 m. reel in a 275 x 275 x 220 mm. box with a total shipping weight of 13.2 kg.

The SKYLINE HYBRID (Halogen Free)

materialHybrid
product categorycar hifi - Speaker cable / speaker cable - Twin-lead, Entry-level
cable typeTwin conductor
conductor materialHYBRID: High purity OFC + Linear Structured Carbon ®saturated layer(s)
design purposeLoudspeaker cable
eff conductor2x(2.04 mm² / ~AWG 14 / 19)
external diameter8.5 mm. wide; 3.4 mm. thick
jacket colorsSky blue
resistance0.84 Ohm/100 m.
capacitance46 pF/m.
insulationJacket: HULLIFLEX ® 3 / 300 Vrms min.
connector typesOur 3.0 mm. Ø cable entrance diameter Bus type Universal Speaker Connectors or our 4.5 mm. Ø cable entrance diameter BERRI Bus Connectors or our DIY Screw-On Speaker Connectors; All custom mountable on ordered lengths.
standard sales units100 m. reels; With connectors mounted to specifications: any length; Without connectors: please consult your van den Hul dealer or the van den Hul distributor in your country.
