The Wind MK II Hybrid 스피커 케이블

형식 스피커 케이블

목록으로

본문

Detail view

The WIND Mk II HYBRID (Halogen Free)

Playing with ideas always opens new windows. One of these windows was the idea that it must be possible to write a computer program with the ability to fine-tune the signal transmission. The result is a fine-tuned product with predictable properties.
Our The WIND Mk II HYBRID was designed as a first result.

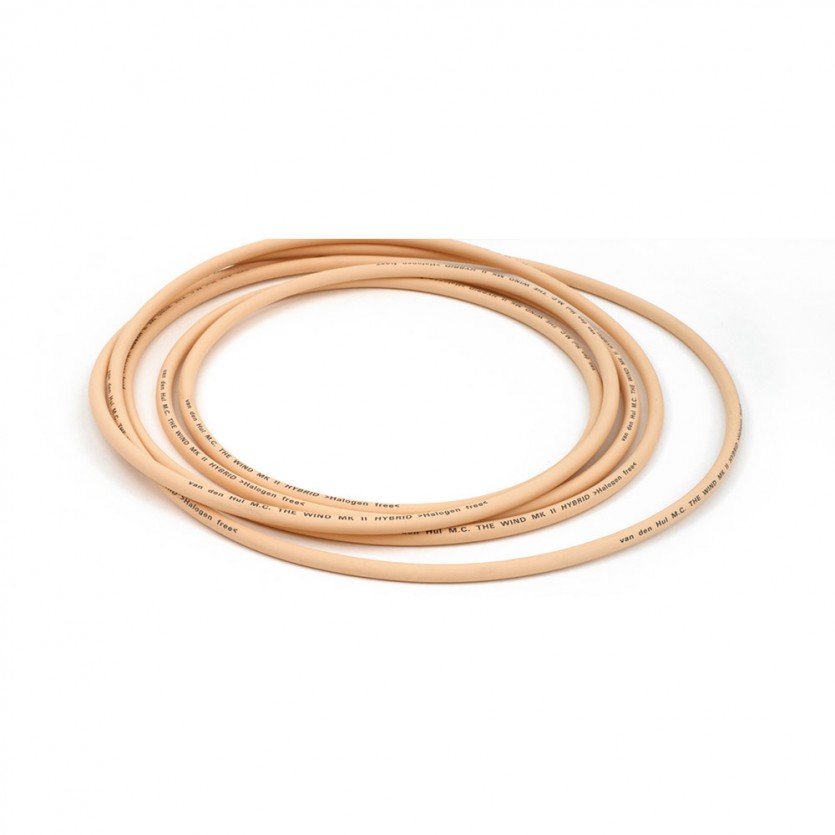

The WIND Mk II HYBRID is a multi-core single conductor loudspeaker cable with a very complex strand construction.

The WIND Mk II HYBRID consists of a total of 173 single non insulated strands in 5 different layers with a total cross-section area of 4.67 mm² equalling AWG 10.5.

To improve the overall transmission quality even more, we have coated the total metal construction with a Linear Structured Carbon ® saturated layer. This extra item dramatically improves the sound quality.
The sonic result is a very detailed signal transmission with a superb spacious character.

The resistance of The WIND Mk II HYBRID is 3.7 Ohm/km. The external diameter is 6.2 mm.
The peach colored jacket is made of HULLIFLEX ® 3, a very flexible and mechanically superb insulation material.
Before connecting The WIND Mk II HYBRID to your equipment we advise to mildly twist both leads to keep them together.

The WIND Mk II HYBRID is available on 100 m. reels.
Shipping: 1 x 100 m. reel in a 275 x 275 x 220 mm. box with a total shipping weight of 8.0 kg.

The WIND Mk II HYBRID (Halogen Free)

materialHybrid
product categoryspeaker cable - Single-lead, Entry-level / internal wiring
cable typeSingle wire, multistrand
conductor materialHYBRID: High purity dense Silver coated high purity Matched Crystal OFC + Linear Structured Carbon ® saturated layer(s)
design purposeHighest quality level loudspeaker cable / External and internal (re)wiring
eff conductor4.67 mm² / AWG 10.5 / 173
external diameter6.2 mm.
jacket colorsPeach
resistance3.7 Ohm/km.
insulationJacket: HULLIFLEX ® 3 / 300 Vrms min.
connector typesOur 4.0 mm. Ø cable entrance diameter Bus type Universal Speaker Connectors or our 6.5 mm. Ø cable entrance diameter BERRI Bus Connectors or our DIY Screw-On Speaker Connectors; All custom mountable on ordered lengths.
standard sales units100 m. reels; With connectors mounted to specifications: any length; Without connectors: please consult your van den Hul dealer or the van den Hul distributor in your country.
