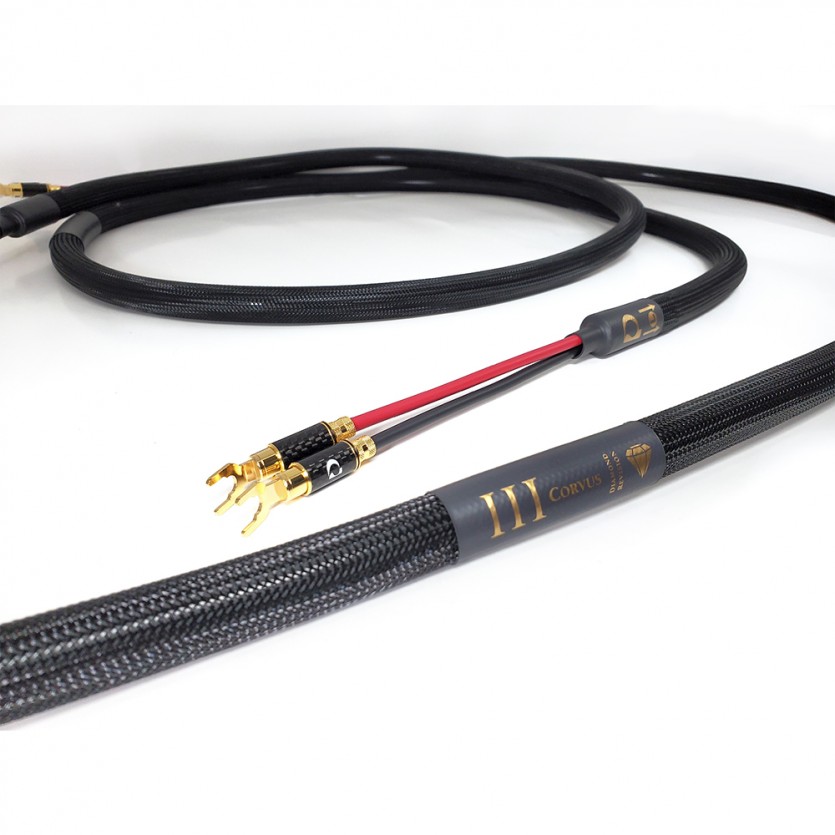

The Corvus line of Interconnects still remain quite unique in that they employ single crystal copper conductors and an improved Ferox dampening material to give amazing tonality warmth and depth! With the Diamond Revision, the sound stage is more up front and more subtle detail is brought out from the music.
Custom for Your System
The audiophile aims for the highest quality and best sound possible. We offer the Corvus line in two different configurations, with customization available upon request:

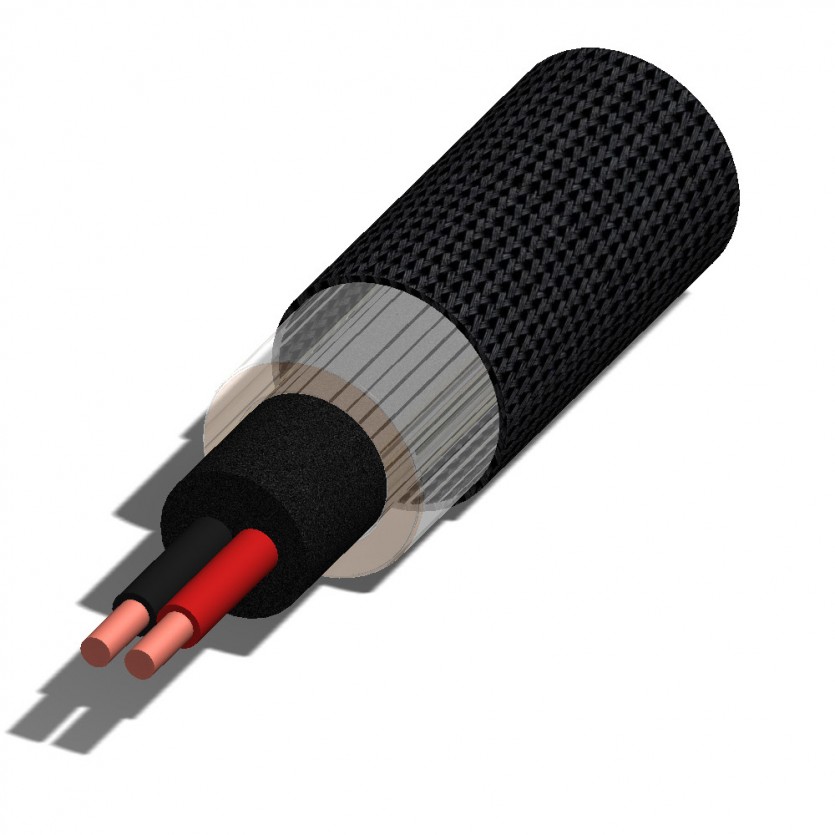

- Standard Speaker

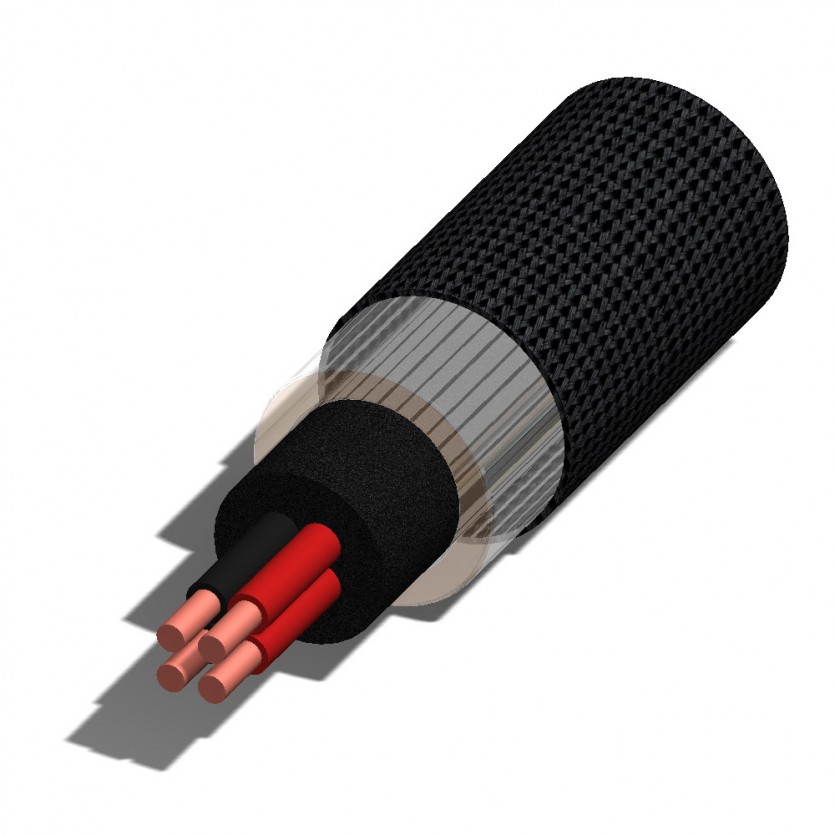

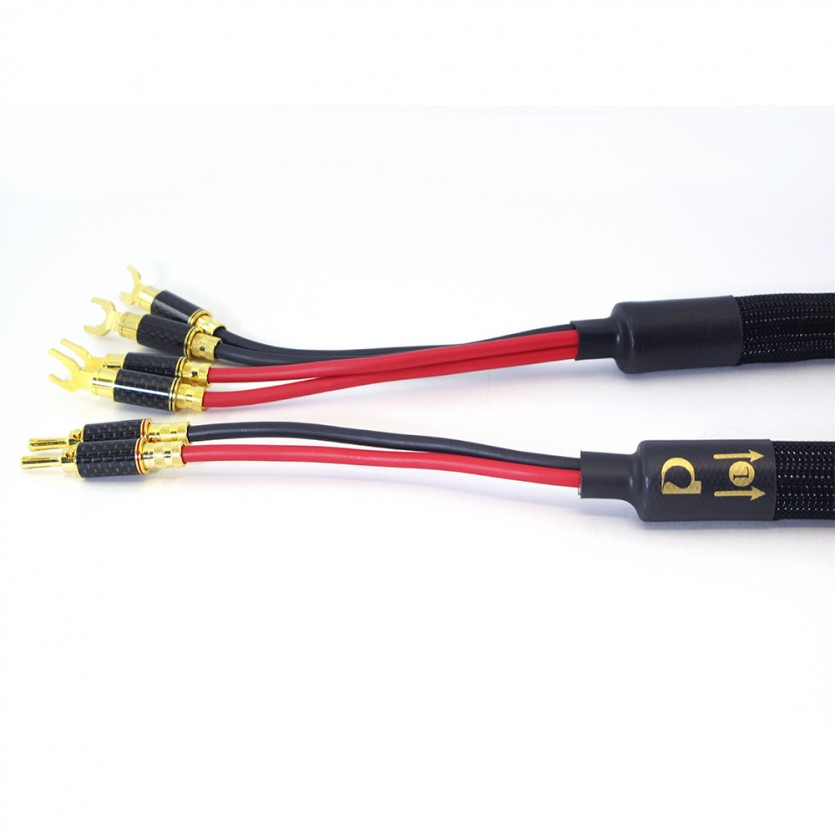

- Bi-Wire Speaker
These speaker cables come in a two (2) cable set.
The Corvus Speaker Cables come standard with:
- Purist's newly designed interchangeable spade/banana.
These are our best connectors yet! They are crafted from beryllium copper with silver plating and then a final gold plating.
Or, you might consider:
- WBT Spades
- WBT Bananas
If your system demands a custom configuration, please contact us. We're able to custom-build to fit your needs. All Corvus Speaker Cables come packaged in a handsome soft case.
Understanding Your Cables
Determine the Right and Left Channels | |
---|---|
Right | |
Left | |
Single Channel |
Determine Positive and Negative | ||
---|---|---|
Positive | Red Lead | Purple Lead vertical biwire only |
Negative | Black Lead | Blue Lead vertical biwire only |
Changing Your Spade or Banana
With Diamond Revision, changing your spade or banana tips is even easier!
No tools or glue is required.
- Unscrew the existing tip on your speaker connector by hand.
- Screw on the new tip and hand tighten.
Simple!
Cable Specifications
Corvus Speaker/Bi-Wire Specifications | |
---|---|
Conductors | SCC |
Metals | Cu |
Dielectric Material | P.V.C. |
Gauge (effective) | 10 AWG |
Dampening Material | Ferox |
Current Capacity (DC) | 55 |
Resistance | 0.000999Ω/FT |
Estimated Break-In Time | 300 Hours |
Cable Diameter (Speaker) | 3/4 Inch |
Cable Diameter (Bi-Wire) | 7/8 Inch |
Connector Type | Purist Spades & Bananas |
Material Treatment | Triple (3x) Cryomag© |
