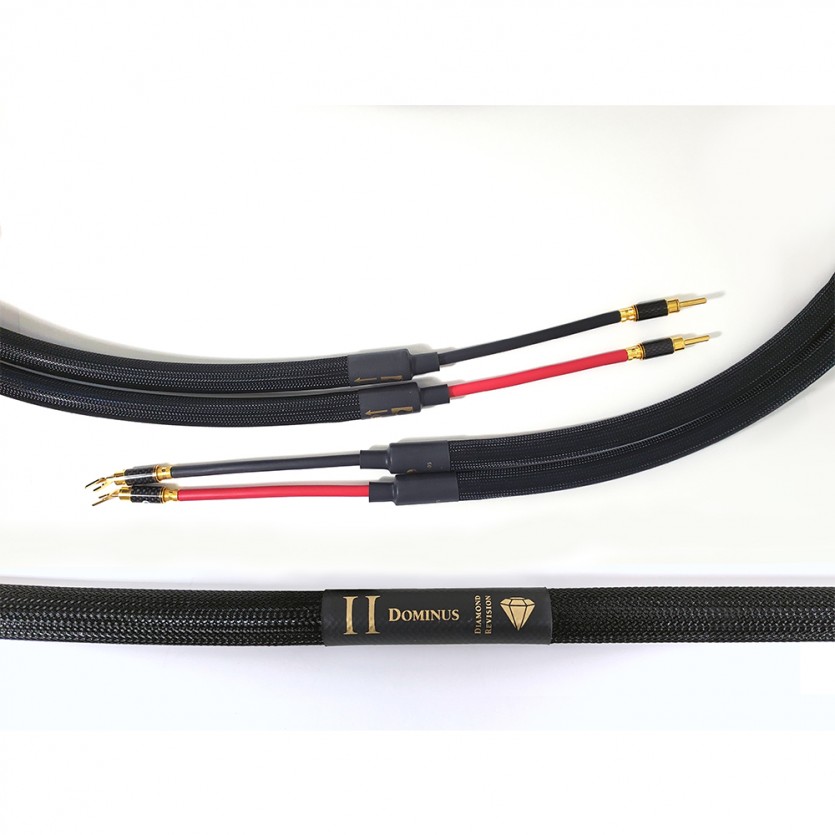

스피커 케이블 DIAMOND REVISION DOMINUS SPEAKER CABLES

형식 스피커 케이블
심선 재질 Ag, Cu, Au
댐핑제 Ferox
단자 바나나, 말굽

목록으로

본문

Detail view

The Dominus line of speaker and bi-wire cables continue to be some of the most revealing and detailed cables! The Diamond Revision keeps the slender more flexible design. The improvements in the alloy metallurgy of the core conductors gives the cables a beautifully rich and detailed sound that brings out the music like you have never heard it before!

Custom for Your System

The audiophile aims for the highest quality and best sound possible. We offer the Dominus line in two different configurations, with customization available upon request:

  • Standard Speaker
  • Bi-Wire Speaker

These speaker cables come in a four (4) cable set, with an individual positive cable and individual negative cable for each channel.

The Dominus Speaker Cables come standard with:

  • Purist's newly designed interchangeable spade/banana.

These are our best connectors yet! They are crafted from beryllium copper with silver plating and then a final gold plating.

Spade/Banana

Or, you might consider:

  • WBT Spades
  • WBT Bananas

If your system demands a custom configuration, please contact us. We're able to custom-build to fit your needs. All Dominus Speaker Cables come packaged in a handsome soft case.


Changing Your Spade or Banana


With Diamond Revision, changing your spade or banana tips is even easier!

No tools or glue is required.

  1. Unscrew the existing tip on your speaker connector by hand.
  2. Screw on the new tip and hand tighten.

Simple!

Understanding Your Cables

Determine the Right and Left Channels
RightR
LeftL
Single ChannelL
Determine Positive and Negative
PositiveRed LeadPurple Lead
vertical biwire only
NegativeBlack LeadBlue Lead
vertical biwire only

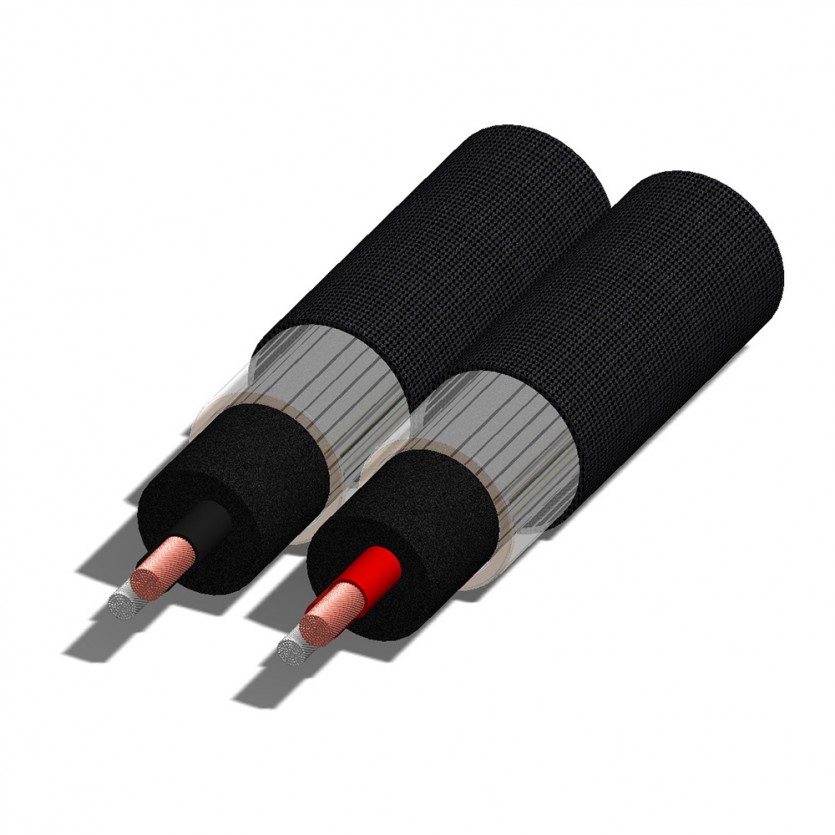

Cable Specifications

Dominus Speaker/Bi-Wire Specifications
ConductorsAlloy
MetalsAg/Cu/Au
Dielectric MaterialF.E.P/P.E.
Gauge (effective)7 AWG
Dampening MaterialFerox
Current Capacity (DC)82
Resistance0.000498Ω/FT
Estimated Break-In Time300 Hours
Cable Diameter (Speaker)5/8 Inch
Cable Diameter (Bi-Wire)7/8 Inch
Connector TypePurist Spade/Banana
Material TreatmentTriple (3x) Cryomag©
